Facility administration

Configure and verify a Hospital facility

Follow a real synthetic Hospital setup edit with visible controls, validation and independent saved-record readback; configure clinical services separately.

Current source · Source reviewed; own-facility settings edit observed · 6 min read

Before you begin

Use an authorized administrator account assigned to the correct facility. The demonstrations used separate synthetic Facility Admin accounts.
Have an approved facility identity, real address, geographic leaf organization and IANA business timezone. The example uses Asia/Riyadh.
Do not reuse the synthetic fixture postcode, generic address or contact details for a real facility.

1. Select the correct facility and open General settings

Select the assigned Hospital facility, expand Settings, and open General. Confirm the facility name and displayed Hospital classification before editing. The screenshot shows an independently created synthetic estate with no patient records.

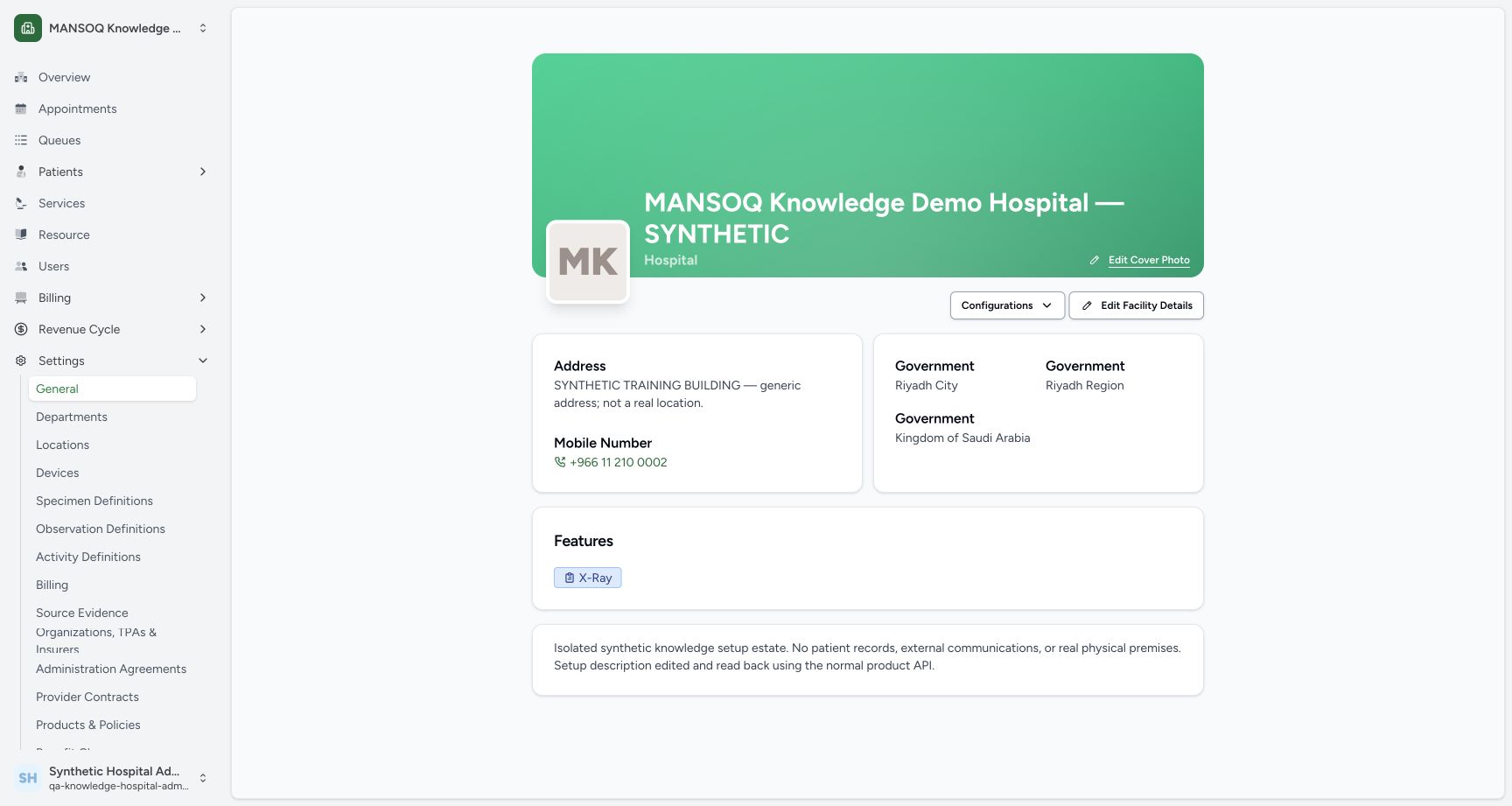

Hospital facility identity and feature settings. Real MANSOQ application with explicitly synthetic Hospital setup data; no patient records. — Hospital facility identity and feature settings · 2026-10-18. Synthetic local training; own Hospital Facility Admin account. Audited source f6e9f05f. Configuration and permissions are specific to this estate. Map tiles and external lookup are not qualified in this isolated preview.

2. Edit identity and business timezone

Choose Edit Facility Details. Keep the approved Hospital type and name, review the description and set the facility’s local IANA business timezone. Review features separately. The source version 2 native code for Hospital is 11; API writes use the label string, not that integer.

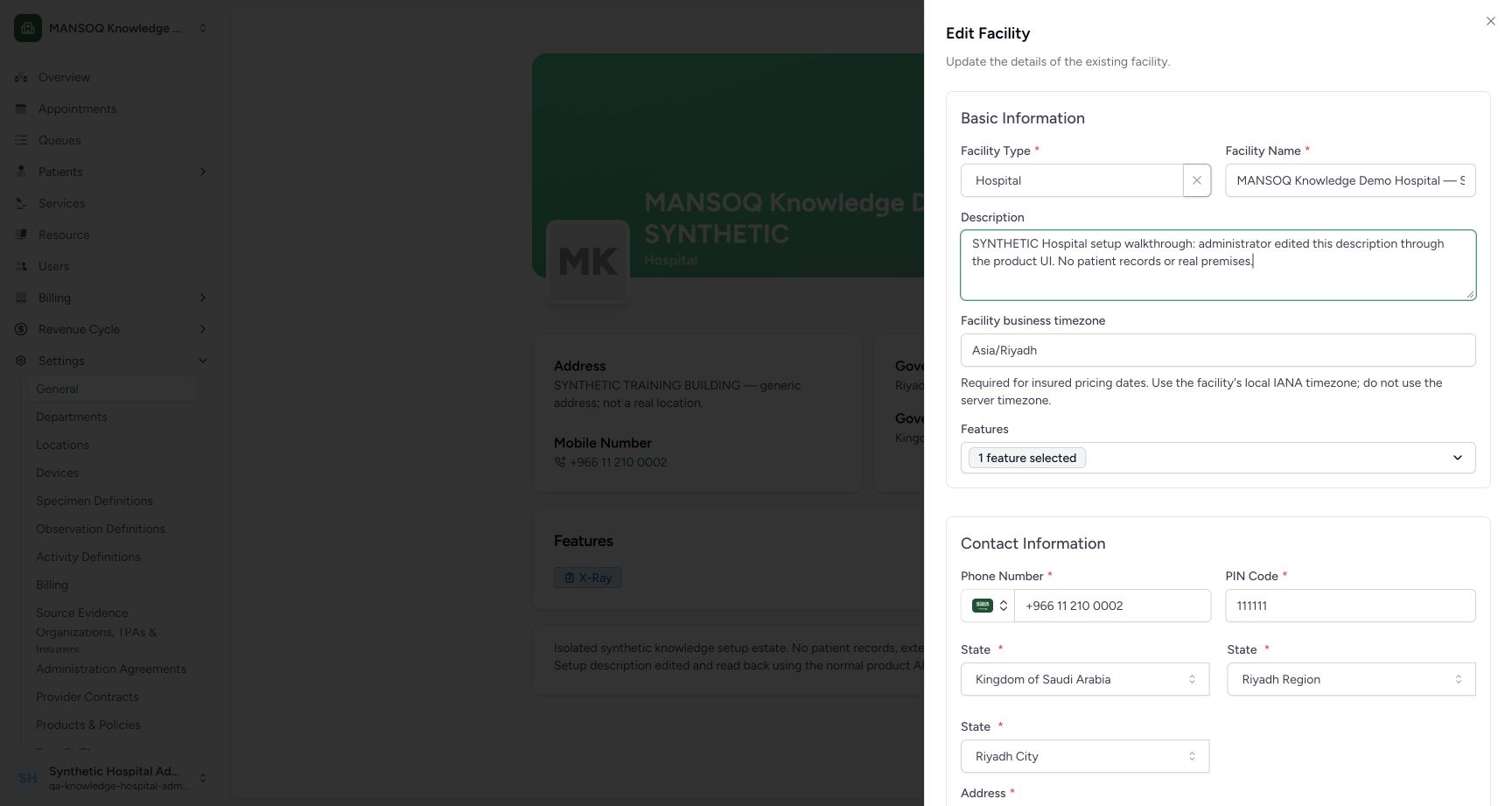

Edit Hospital classification, description and timezone. Real MANSOQ application with explicitly synthetic Hospital setup data; no patient records. — Edit Hospital classification, description and timezone · 2026-10-18. Synthetic local training; own Hospital Facility Admin account. Audited source f6e9f05f. Configuration and permissions are specific to this estate. Map tiles and external lookup are not qualified in this isolated preview.

3. Resolve an invalid business timezone

The demonstrated Hospital edit rejected Mars/Olympus with a request for a valid IANA timezone. Restore Asia/Riyadh when that is the approved facility timezone, then submit again. Do not replace the local facility timezone with the server timezone.

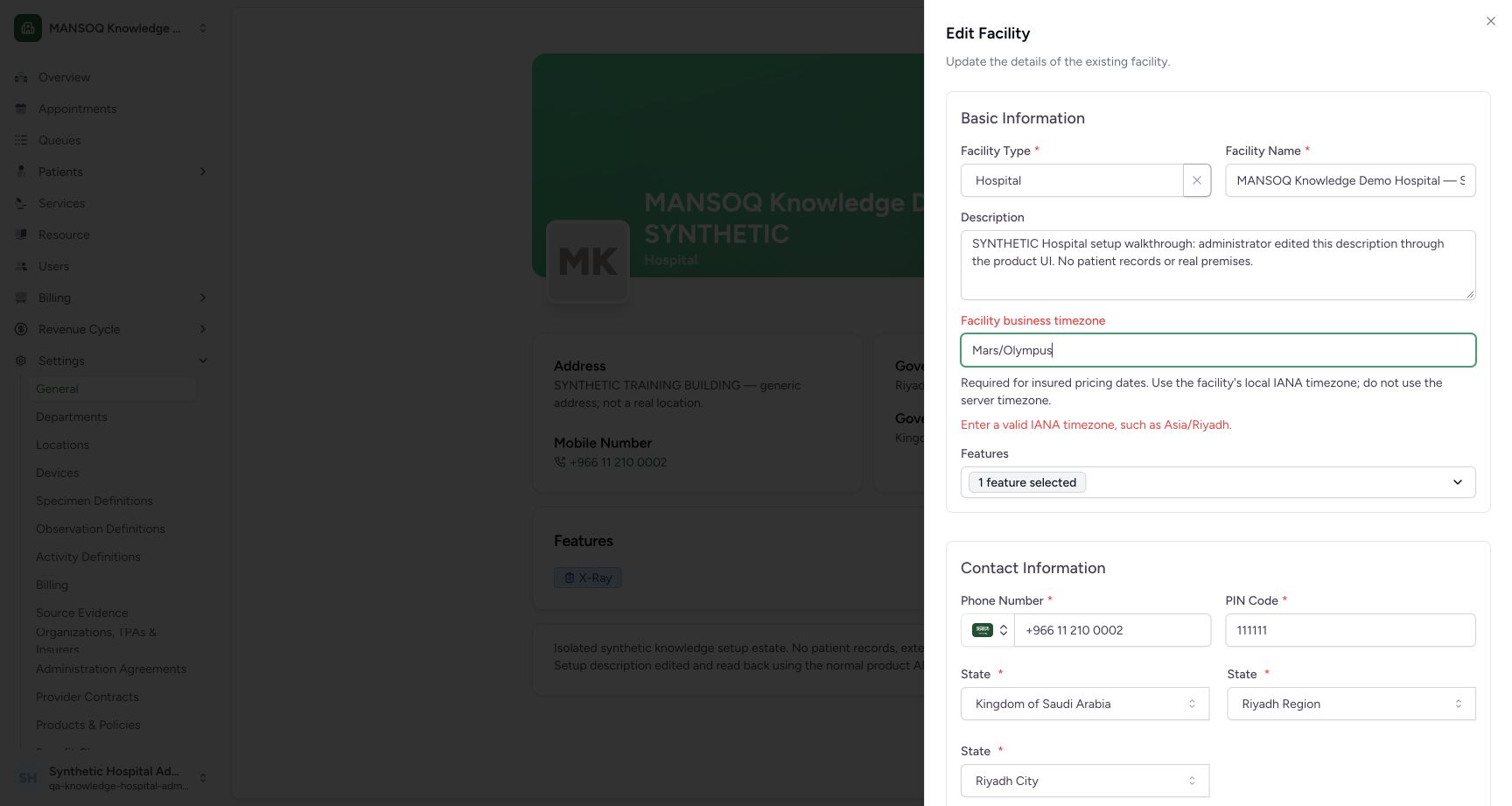

Hospital edit rejects a non-IANA timezone. Real MANSOQ application with explicitly synthetic Hospital setup data; no patient records. — Hospital edit rejects a non-IANA timezone · 2026-10-18. Synthetic local training; own Hospital Facility Admin account. Audited source f6e9f05f. Configuration and permissions are specific to this estate. Map tiles and external lookup are not qualified in this isolated preview.

4. Save valid values and verify the result

Restore the approved values, scroll to the end of the form and select Update Facility. When the edit sheet closes, check the updated description on General settings. An independent normal API read under this estate’s own Facility Admin confirmed the saved text, type, Asia/Riyadh, original features and private directory visibility. The screenshot is the saved result; the shared save-control placement is illustrated in the separate common-form reference.

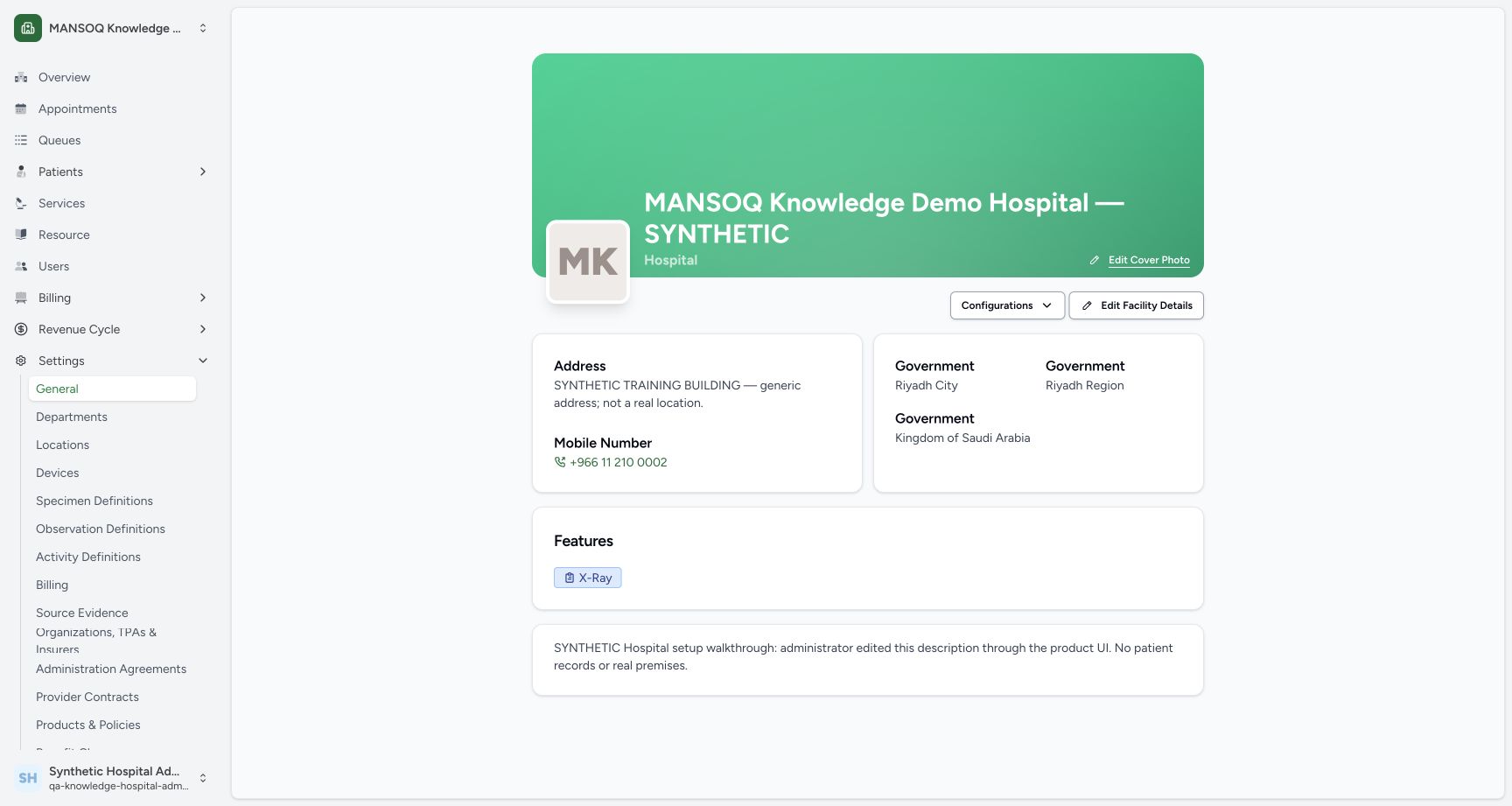

Hospital description saved through the product UI. Real MANSOQ application with explicitly synthetic Hospital setup data; no patient records. — Hospital description saved through the product UI · 2026-10-18. Synthetic local training; own Hospital Facility Admin account. Audited source f6e9f05f. Configuration and permissions are specific to this estate. Map tiles and external lookup are not qualified in this isolated preview.

5. Review the operational department and location hierarchy

Open Settings → Departments and confirm the operational department. The reserved Administration root is separate: the API rejects creating an operational department under that root. Under Settings → Locations, open the configured building and ward to review the child bed. In this demonstration, Synthetic Ward and Synthetic Bed 01 were explicitly created. The displayed Available status is not evidence of a tested patient assignment, bed transfer or discharge workflow.

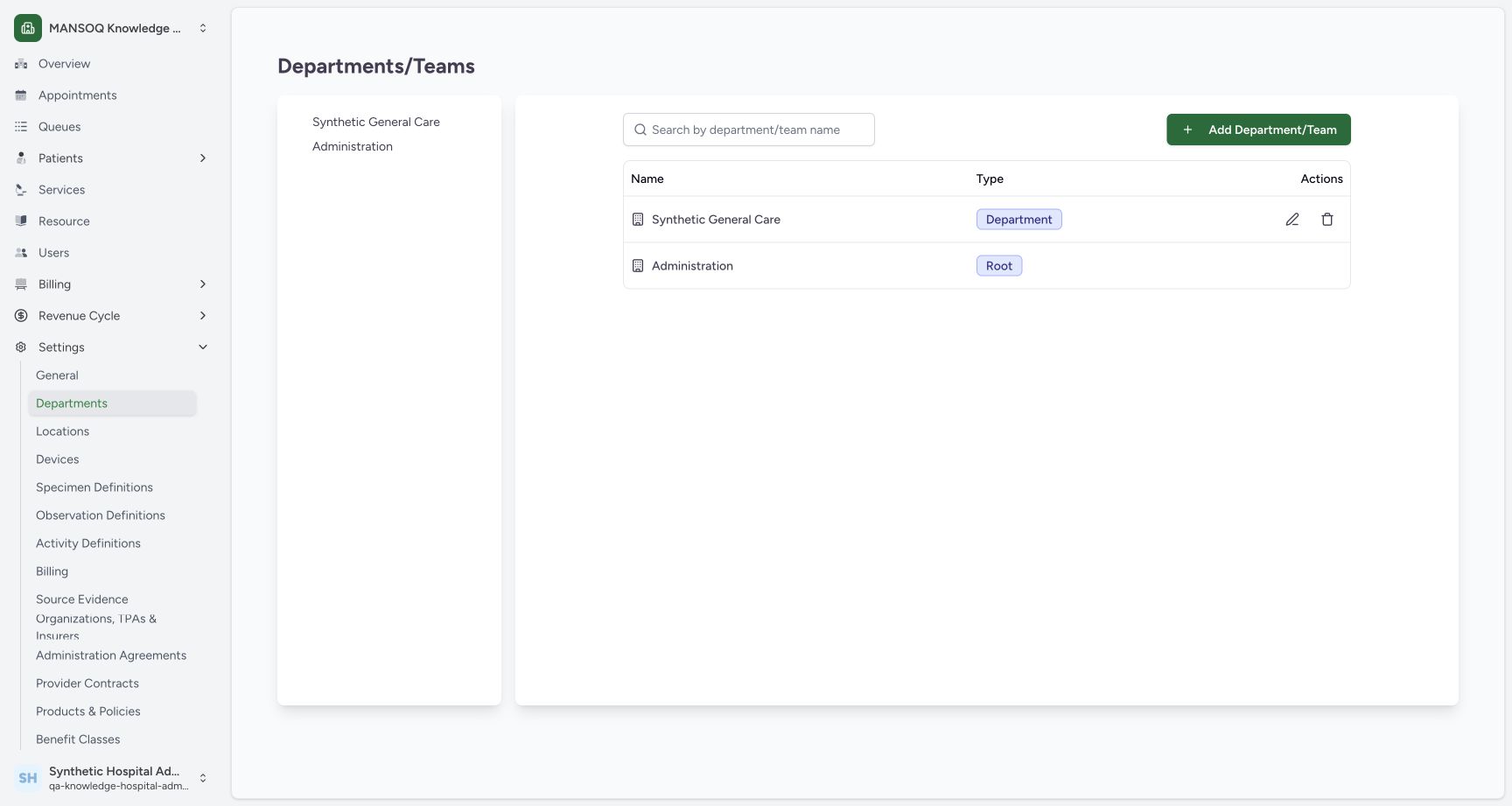

Hospital operational department and Administration root. Real MANSOQ application with explicitly synthetic Hospital setup data; no patient records. — Hospital operational department and Administration root · 2026-10-18. Synthetic local training; own Hospital Facility Admin account. Audited source f6e9f05f. Configuration and permissions are specific to this estate. Map tiles and external lookup are not qualified in this isolated preview.

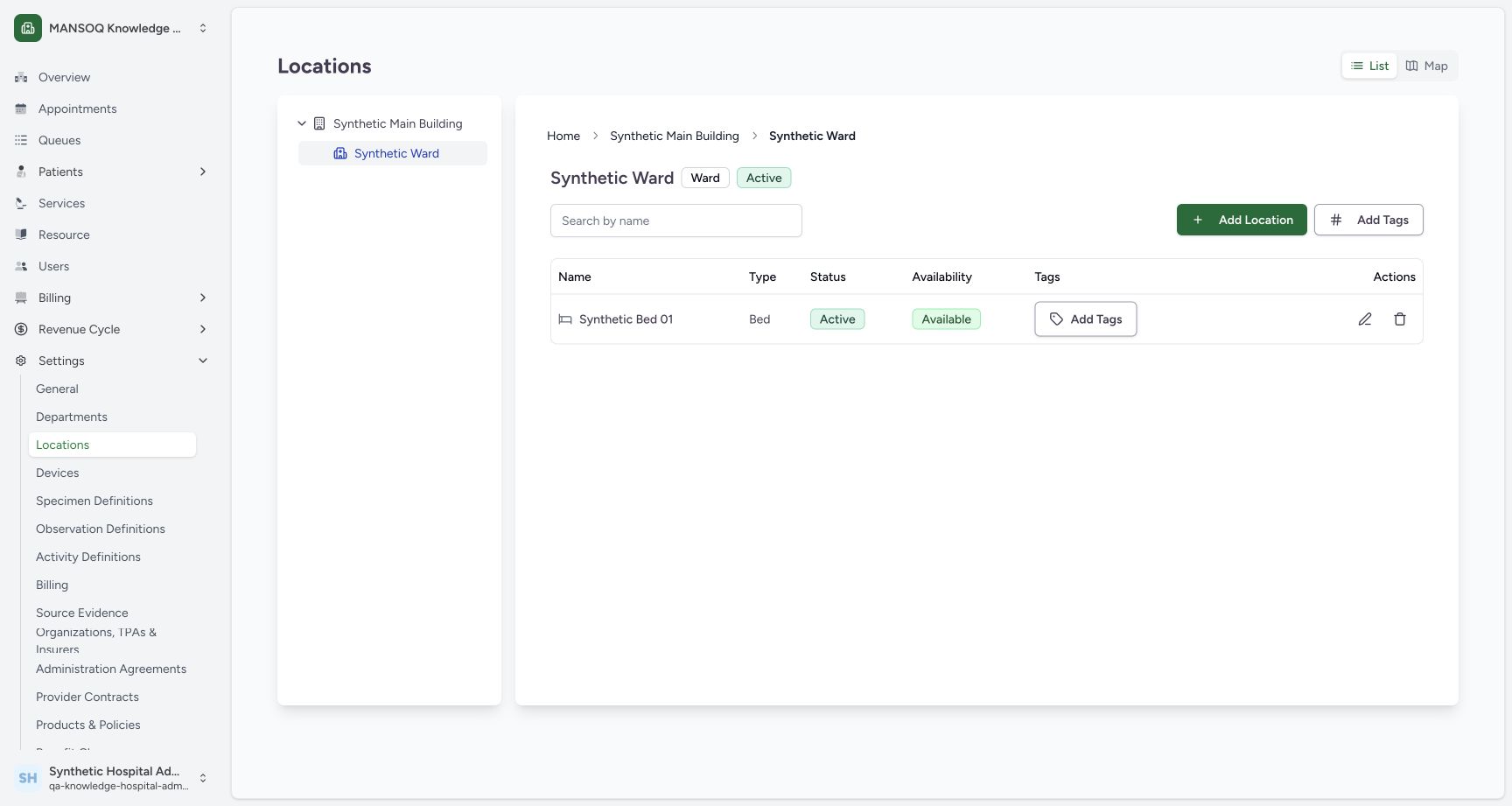

Hospital building, ward and bed hierarchy. Real MANSOQ application with explicitly synthetic Hospital setup data; no patient records. — Hospital building, ward and bed hierarchy · 2026-10-18. Synthetic local training; own Hospital Facility Admin account. Audited source f6e9f05f. Configuration and permissions are specific to this estate. Map tiles and external lookup are not qualified in this isolated preview.

What was created and independently verified

This Hospital estate was created through the normal product POST /api/v1/facility/ API, which returned 200 in this isolated deployment. A separate facility GET and read-only native-code check confirmed Hospital / 11 and Asia/Riyadh. Its own department, locations, service and Facility Admin membership were then created through normal product APIs and read back. The settings edit shown above was performed through the actual application UI. Organization-screen facility creation was not captured by this walkthrough; that UI flow remains open.

Classification does not enable a module

The same shared navigation and setup components were observed across the five estates. A facility label alone does not prove that appointments, inpatient care, diagnostics, pharmacy, NPHIES, claims or finance are operational. Validate the configured service internal types, departments, locations, catalogues, deployment settings and role permissions for each intended workflow.

Address, maps and visibility

The current shared form requires a six-digit PIN Code and, in this synthetic geographic hierarchy, repeats the State label for country, region and city selectors. Check the selected geographic names. External map tiles and lookup were restricted in the isolated preview and were not qualified. Make this facility public controls facility-directory discoverability, not access to the knowledge website. Review it explicitly: the create-form defaults and existing-facility edit values can differ.

Evidence scope

The captured operation is an own-facility administrator settings edit and the specific extra screens described below. Positive own-facility reads and a negative read of the protected training Polyclinic were observed for all five accounts. These observations do not close the full role boundary, facility, medical, nonmedical or workflow matrix. No complete end-to-end clinical qualification is asserted.

Troubleshooting

The field is valid locally but the server rejects the save

Read the actual validation message, verify the facility, approved unique name and geographic leaf, and keep the existing record unchanged until the problem is resolved. Do not bypass API validation.

A required postcode does not match the real address format

The observed form currently enforces six digits. Escalate deployment localization; do not invent a real-facility address or copy the training placeholder.

Source evidence

References are pinned to the private MANSOQ source repository. Repository access is required to open these links.
