Facility administration

Create and verify a base specimen definition

Complete the required specimen catalogue fields, choose an installed collected type, save the definition and verify its persisted defaults.

8 min read · Source baseline f6e9f05f

Verification and applicability

Seven actual 1920 × 1080 original f6e9 Chrome screenshots and seven narrow hash-bound steps. Normal existing Laboratory Facility Admin created one synthetic specimen definition through the ordinary form. Independent normal detail/list GET200 verifies UUIDc2ac7947…, own Laboratory68fbdcd2…, Active, exact controlled slug, HL7 v2-0487 BLDV/Blood venous, false/false/Preferred tested defaults and empty optional fields. This base checkpoint precedes the separate optional metadata update.

Check your installed version, permissions and local configuration.

Before you begin

Sign in with your existing authorized Facility Admin account and select the intended Laboratory. This observed account already has specimen-definition read/write permissions; no membership or role is changed.
These screenshots use a clearly synthetic reusable definition. No patient specimen, specimen collection, patient order, real collection protocol, billing item or external transaction is created.

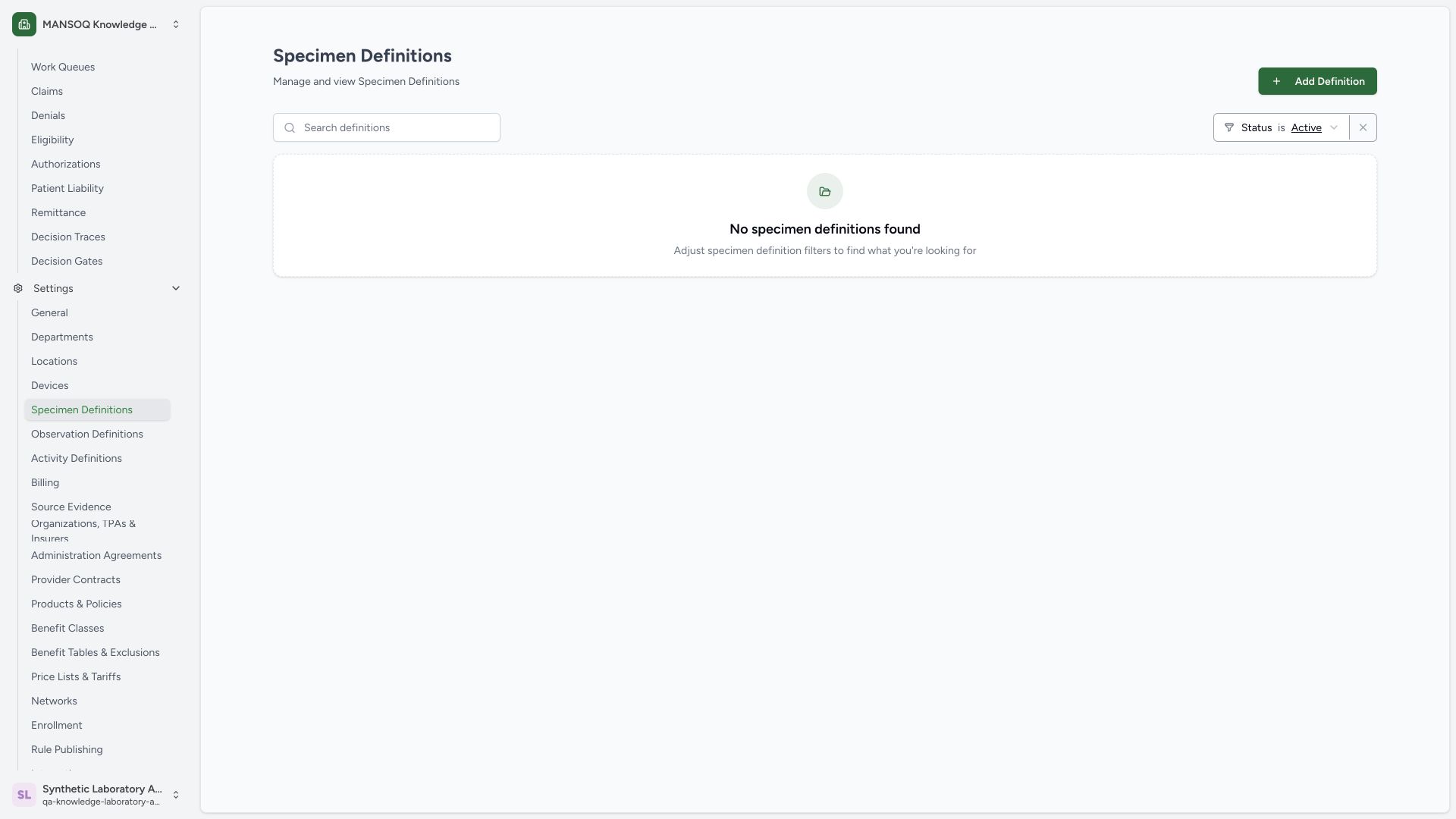

1. Open the specimen catalogue in the intended Laboratory

Open Settings → Specimen Definitions as the existing authorized Facility Admin. Confirm the Active filter and the initial No specimen definitions found state. Use Add Definition to begin the synthetic catalogue example.

Open the Laboratory specimen catalogue. Actual wide MANSOQ synthetic Laboratory Facility Admin synthetic base specimen catalogue creation view. — **Open the Laboratory specimen catalogue · 2026-10-18**Recorded baseline screen · 1920 × 1080
Capture details
Actual 1920 × 1080 Chrome pixels; pinned source f6e9f05f. Laboratory Facility Admin synthetic base specimen catalogue creation
**Specimen Definitions**: Open Settings → Specimen Definitions in the intended facility.
**Search definitions**: Search the reusable specimen catalogue.
**Status Active**: The initial list filters Active definitions.
**Add Definition**: Start a new synthetic catalogue definition.
**Empty catalogue**: No specimen definitions match this initial view.

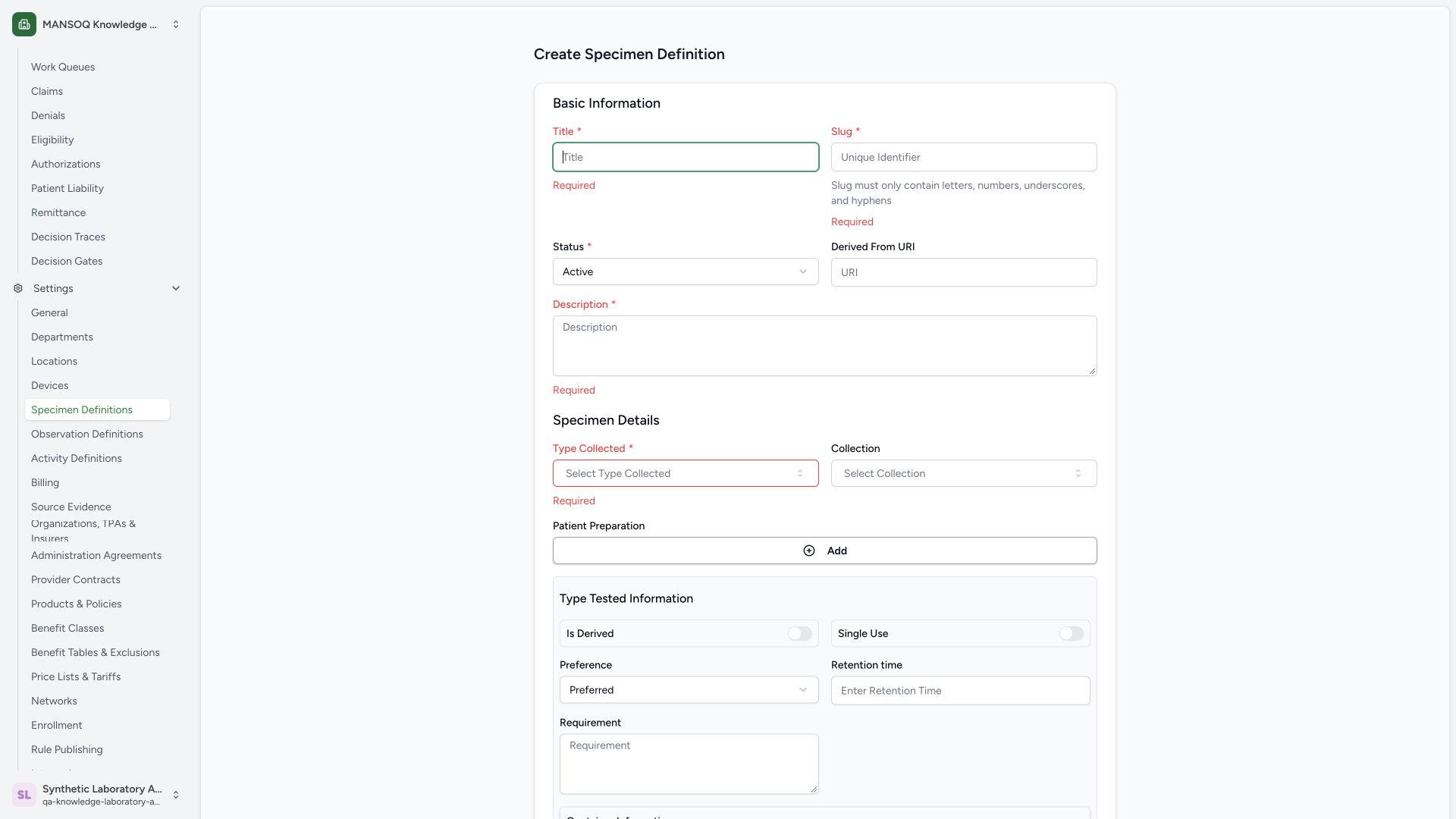

2. Identify the required fields

A blank Save shows required feedback for Title, Slug, Description and Type Collected. Active is already selected. Enter a unique short slug of 5–25 characters using the allowed letters, numbers, underscores and hyphens.

Identify required specimen definition fields. Actual wide MANSOQ synthetic Laboratory Facility Admin synthetic base specimen catalogue creation view. — **Identify required specimen definition fields · 2026-10-18**Recorded baseline screen · 1920 × 1080
Capture details
Actual 1920 × 1080 Chrome pixels; pinned source f6e9f05f. Laboratory Facility Admin synthetic base specimen catalogue creation
**Title required**: Enter the synthetic catalogue title.
**Slug required**: Review a unique 5–25 character short slug.
**Description required**: Explain the synthetic catalogue scope.
**Type Collected required**: Select an actual installed terminology result.
**Active default**: This example retains Active.

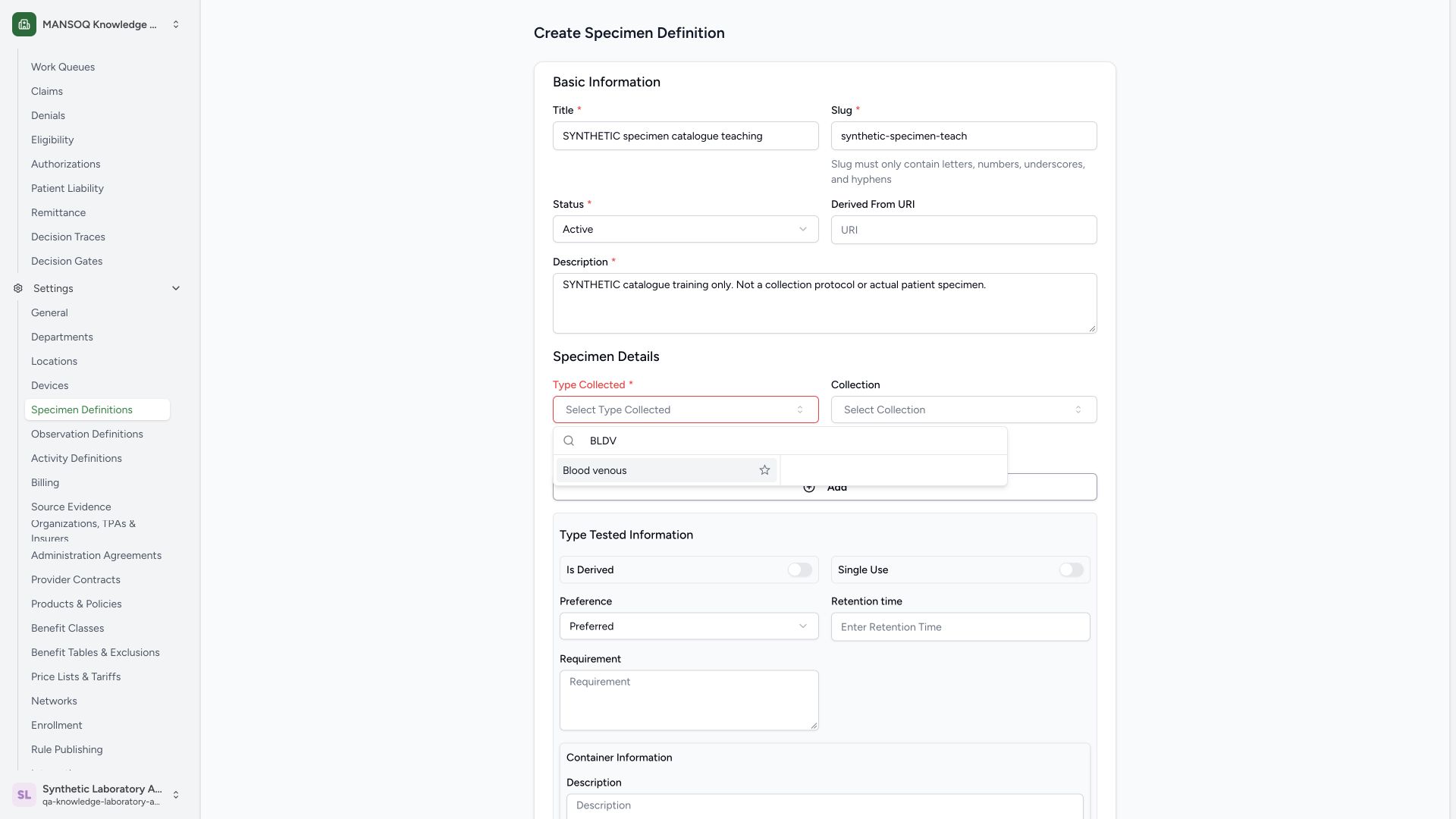

3. Enter the synthetic identity and select a real lookup result

Enter SYNTHETIC specimen catalogue teaching, the short slug synthetic-specimen-teach and the illustrated synthetic-only description. Search BLDV in Type Collected. The normal installed lookup returns Blood venous; select this actual result.

Select the actual collected type result. Actual wide MANSOQ synthetic Laboratory Facility Admin synthetic base specimen catalogue creation view. — **Select the actual collected type result · 2026-10-18**Recorded baseline screen · 1920 × 1080
Capture details
Actual 1920 × 1080 Chrome pixels; pinned source f6e9f05f. Laboratory Facility Admin synthetic base specimen catalogue creation
**Synthetic identity**: Review the clearly synthetic title.
**Controlled slug**: Review synthetic-specimen-teach.
**Type search**: The actual lookup search is BLDV.
**Returned Blood venous**: Select the installed result rather than entering an arbitrary code.

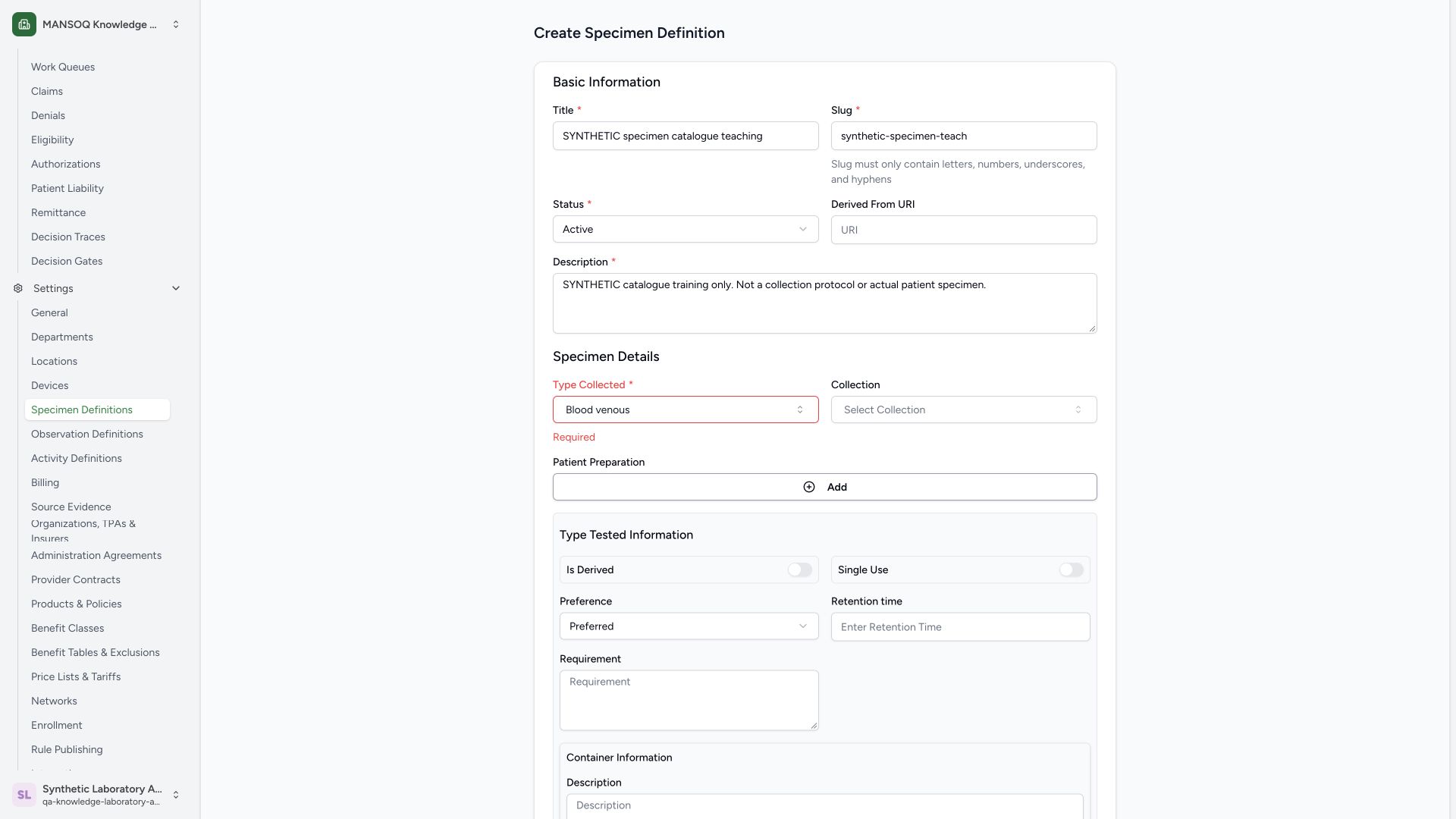

4. Review the selected type and defaults

Confirm Blood venous, Active, the synthetic identity, Is Derived off, Single Use off and Preferred. In this actual form the previous Type Collected Required hint remains until Save revalidates the selection. Collection and patient preparation remain unselected in the base example.

Review the selected specimen type. Actual wide MANSOQ synthetic Laboratory Facility Admin synthetic base specimen catalogue creation view. — **Review the selected specimen type · 2026-10-18**Recorded baseline screen · 1920 × 1080
Capture details
Actual 1920 × 1080 Chrome pixels; pinned source f6e9f05f. Laboratory Facility Admin synthetic base specimen catalogue creation
**Selected type**: Blood venous is now selected. The prior Required hint has not yet revalidated.
**Active**: The base example retains Active.
**Is Derived off**: The default Is Derived switch remains off.
**Single Use off**: The default Single Use switch remains off.
**Preferred**: The default tested preference remains Preferred.

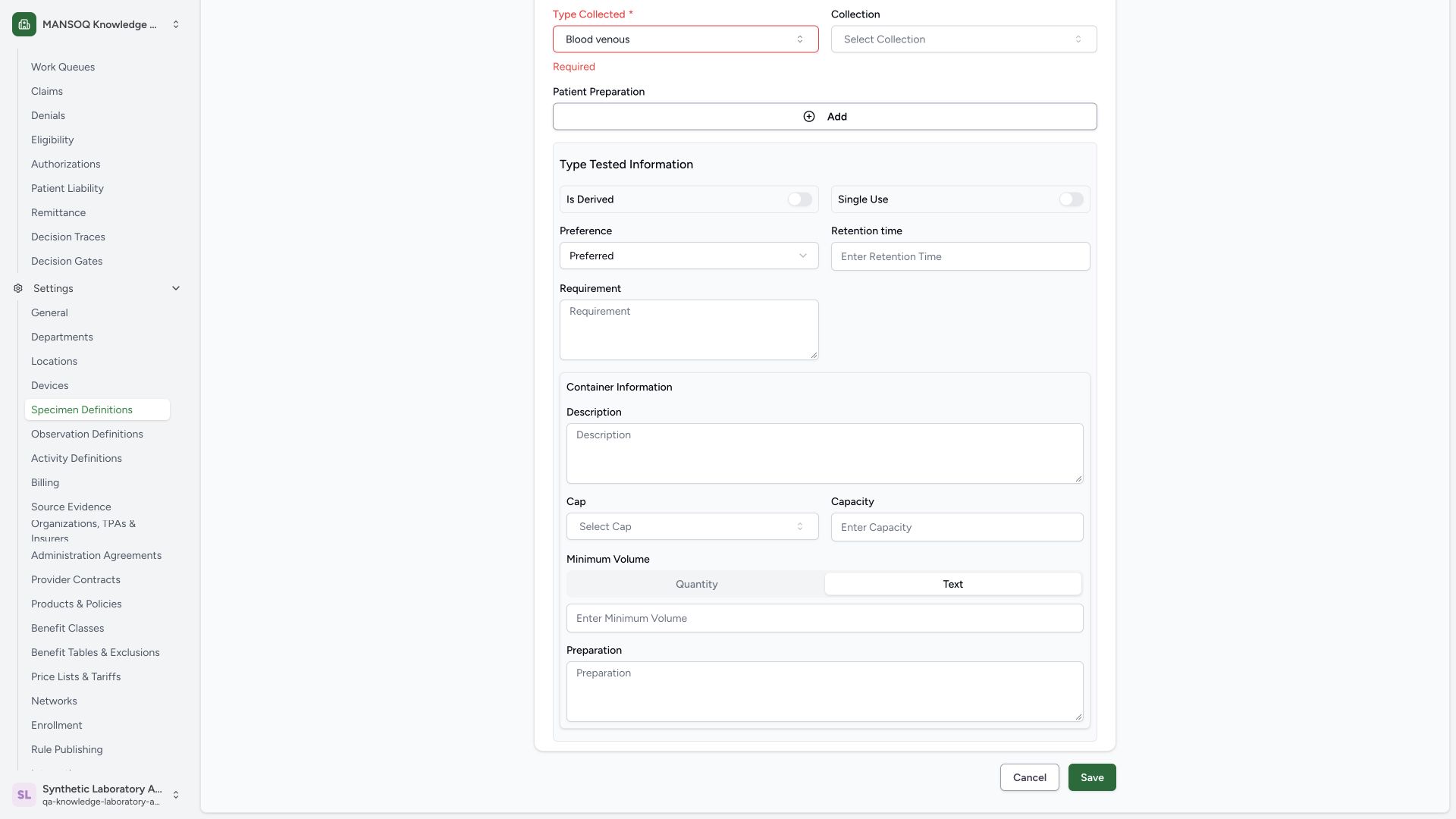

5. Review optional container fields and save once

Scroll through the remaining form. Retention time, Requirement, container Description, Cap, Capacity, minimum-volume Text and Preparation remain empty in this base example. Review the defaults and use Save once. This saves a catalogue definition, not a patient specimen.

Review optional specimen fields and save. Actual wide MANSOQ synthetic Laboratory Facility Admin synthetic base specimen catalogue creation view. — **Review optional specimen fields and save · 2026-10-18**Recorded baseline screen · 1920 × 1080
Capture details
Actual 1920 × 1080 Chrome pixels; pinned source f6e9f05f. Laboratory Facility Admin synthetic base specimen catalogue creation
**Tested switches**: Is Derived and Single Use remain off.
**Preference**: Preferred remains selected.
**Retention time**: No retention time is configured in this base example.
**Container description**: Optional container details remain blank.
**Minimum Volume mode**: Text is selected with an empty value; no quantity is configured.
**Save**: Save the reviewed base definition once.

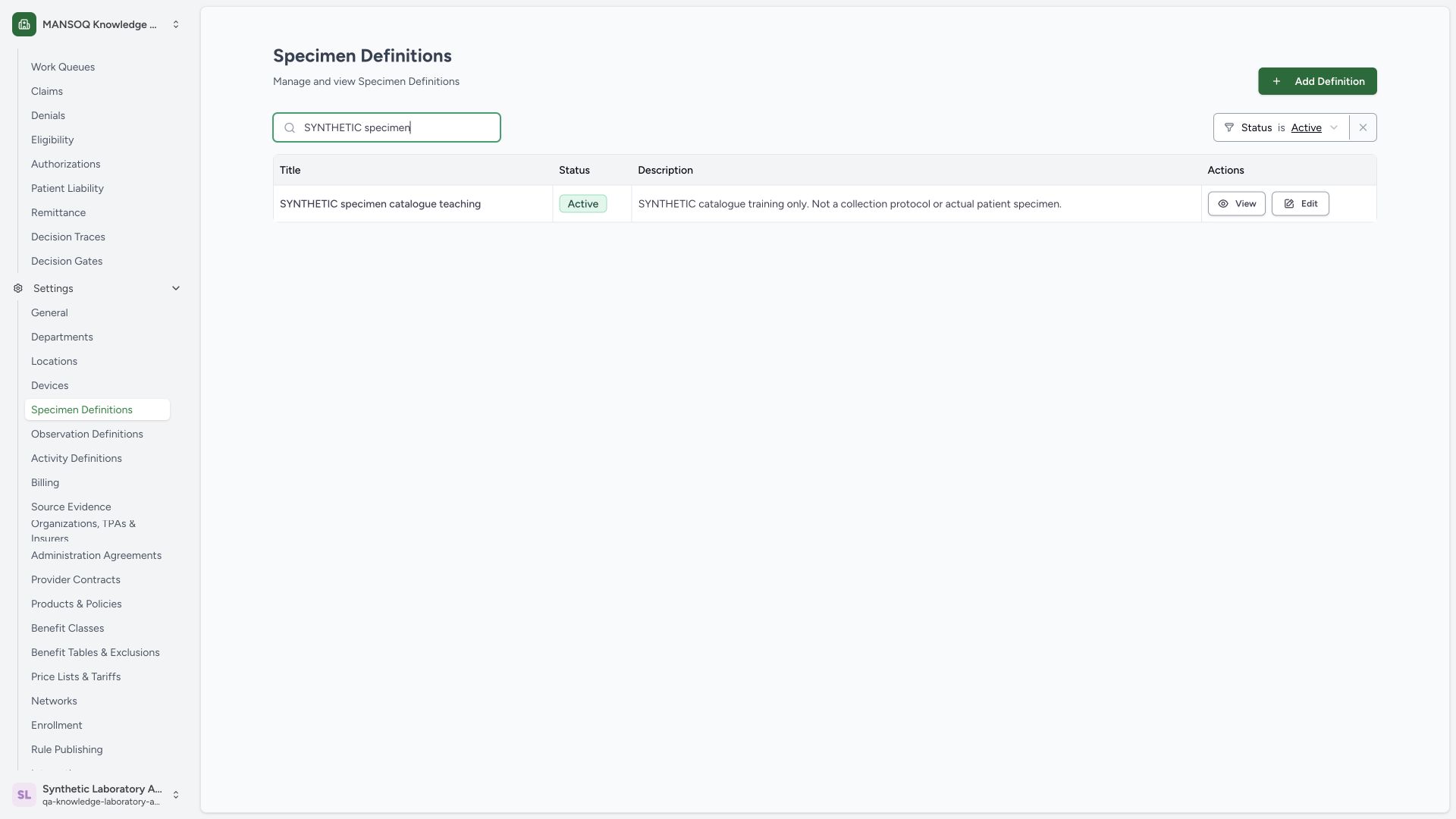

6. Find the saved Active definition

On the returned list, search SYNTHETIC specimen with Active selected. Confirm the synthetic title, description and Active row badge. Use View to open the persisted record; Edit is a separate maintenance action.

Find the saved Active specimen definition. Actual wide MANSOQ synthetic Laboratory Facility Admin synthetic base specimen catalogue creation view. — **Find the saved Active specimen definition · 2026-10-18**Recorded baseline screen · 1920 × 1080
Capture details
Actual 1920 × 1080 Chrome pixels; pinned source f6e9f05f. Laboratory Facility Admin synthetic base specimen catalogue creation
**Search**: Search SYNTHETIC specimen with Active selected.
**Saved title**: The new synthetic definition is listed.
**Active row**: The saved status is Active.
**View**: Open the persisted specimen definition.
**Edit**: Edit is a separate maintenance action.

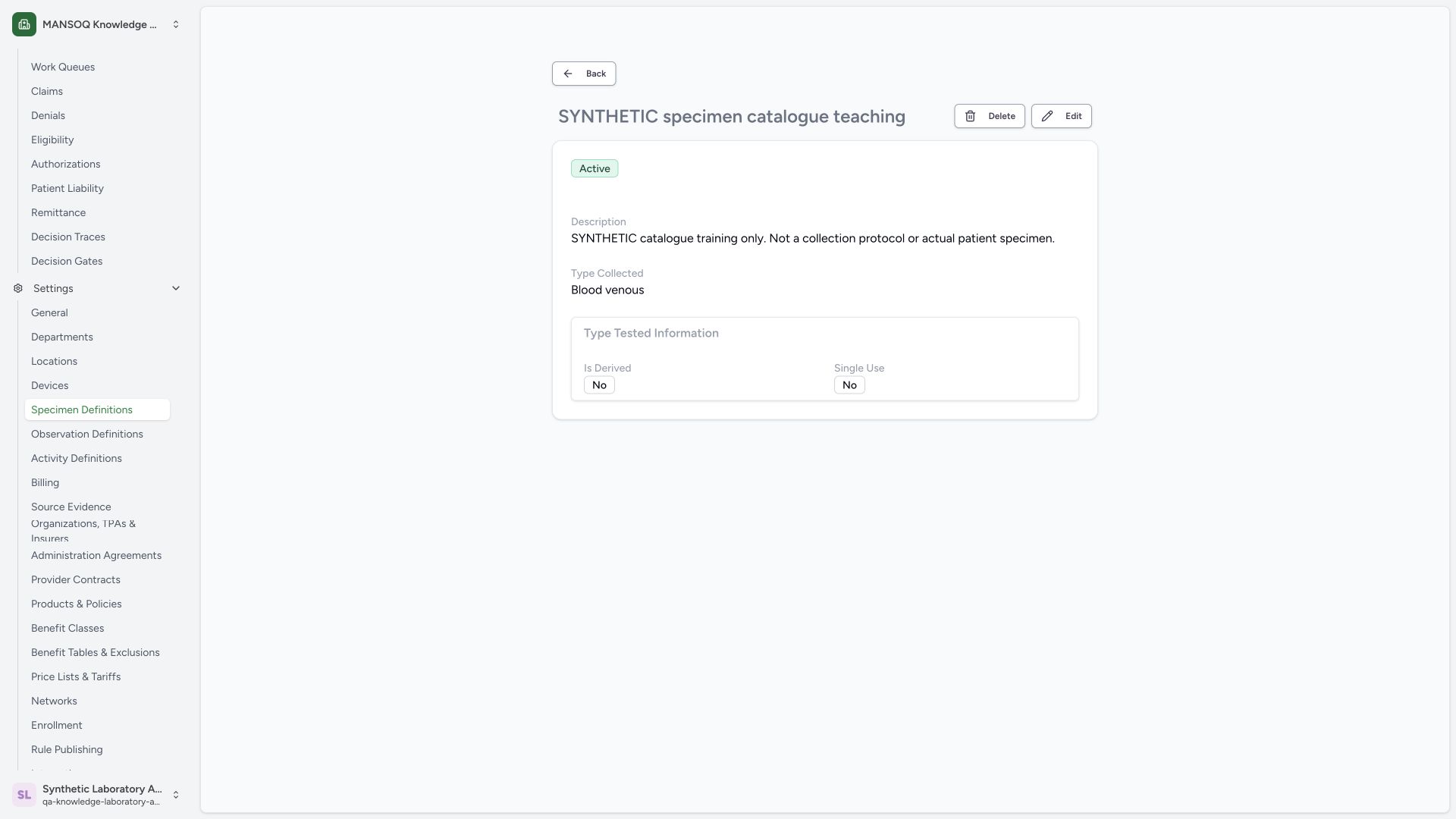

7. Verify the persisted detail

Confirm the saved synthetic title, Active, description, Blood venous, Is Derived: No and Single Use: No. Independent normal detail and list GET200 reads confirm the same UUID, facility-scoped slug, actual BLDV HL7 coding and saved Preferred default. Delete is not used.

Verify the persisted specimen definition. Actual wide MANSOQ synthetic Laboratory Facility Admin synthetic base specimen catalogue creation view. — **Verify the persisted specimen definition · 2026-10-18**Recorded baseline screen · 1920 × 1080
Capture details
Actual 1920 × 1080 Chrome pixels; pinned source f6e9f05f. Laboratory Facility Admin synthetic base specimen catalogue creation
**Saved title**: Verify the intended synthetic catalogue item.
**Active**: The persisted status is Active.
**Description**: The record remains clearly marked as synthetic training.
**Type Collected**: Blood venous is persisted.
**Is Derived No**: The saved switch value is No.
**Single Use No**: The saved switch value is No.
**Edit**: This normal Edit link resolves to the full facility settings route.

Catalogue setup and actual specimen work

A Specimen Definition stores reusable catalogue metadata. Creating or editing this definition does not collect a specimen or document a patient result. The illustrated descriptions, requirement, container and preparation notes explicitly identify training content.

Role and source version

This guide is observed with one existing Laboratory Facility Admin on original f6e9 screens. The source grants specimen-definition writes to Facility Admin/Admin and read rights to additional roles. The presence of a generic control is not proof of another role’s authorization or every facility variant.

Additional branches

Collection coding, patient-preparation coding and its add/remove/duplicate behavior, Derived From URI, cap coding, retention/capacity quantities, numerical minimum volume, status lifecycle and activity requirement linking require their own pictured sequences. They are not qualified by the base definition or text-only update. The backend also has a Handling structure that the pinned specimen form does not expose as a field.

Troubleshooting

Required remains visible after choosing Type Collected

In this observed sequence the prior Required hint stayed visible immediately after selecting Blood venous. The next normal Save revalidated the selected value and successfully created the definition. Confirm the selected result and review actual Save feedback; do not create an arbitrary code.

The newly saved row does not immediately appear

Wait for the list to finish loading or use an explicit search with the intended Status filter. The illustrated search SYNTHETIC specimen refreshed the Active list and returned the saved definition.

Source evidence

References are pinned to the private MANSOQ source repository. Repository access is required to open these links.
