MANSOQ Knowledge
← This release collection

IT & Integrations · VERSION 39b72767

Find a versioned API contract safely

Navigate the installed read-only Swagger reference and distinguish source version, schema dialect and generated examples.

IT administrator · Integration engineer · Developer

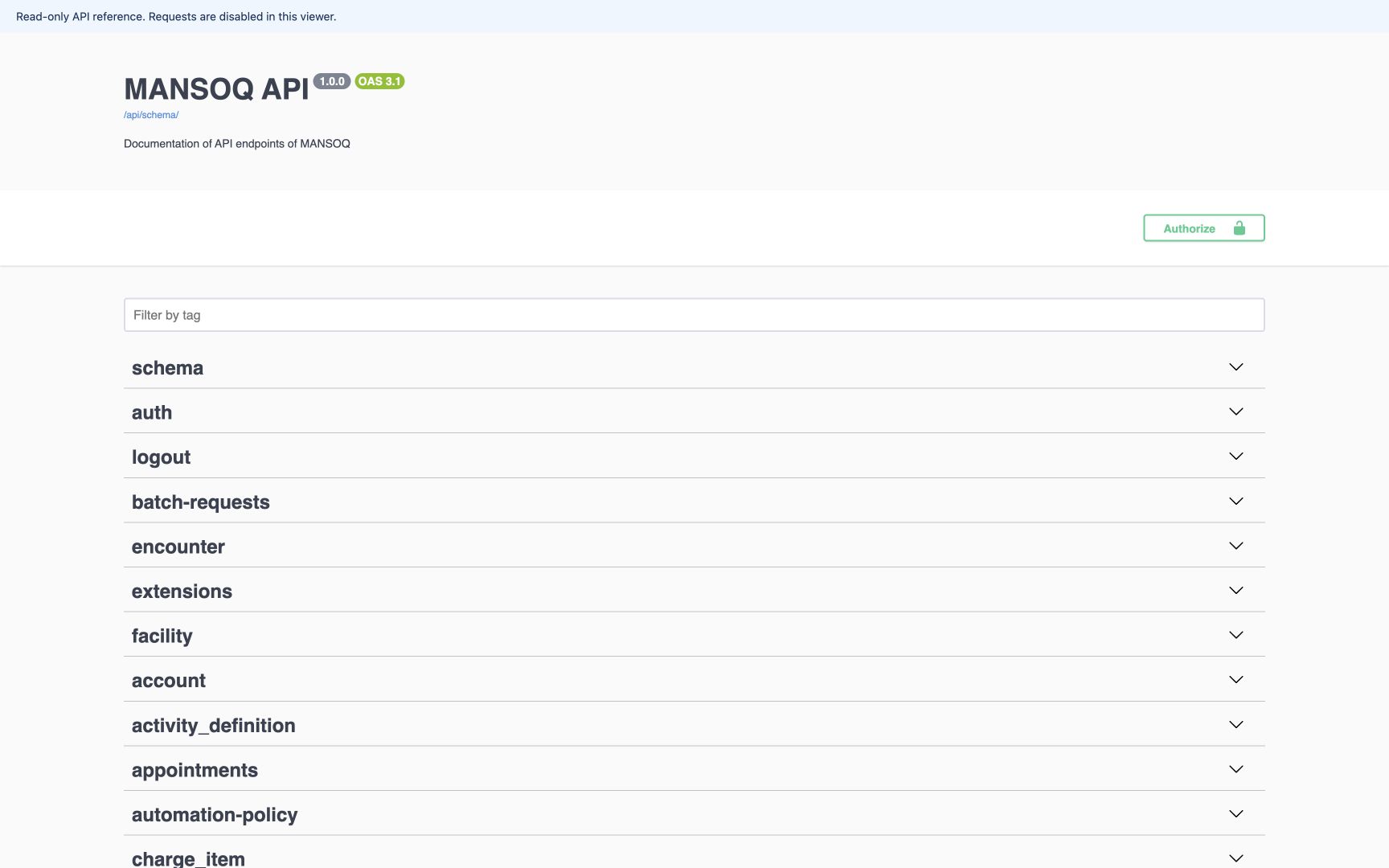

The rendered viewer shows read-only banner, MANSOQ API label 1.0.0, OAS 3.1, schema link, tag filter and Authorize button. No credentials were entered; endpoint submission is disabled.1234
Recorded release 39b72767 · 2026-10-19 · 1728 × 1080

Find the local read-only API reference

Capture details

Fresh 1728×1080 Chrome capture of the installed read-only API reference rendered from committed MANSOQ release 39b72767. This local reference does not establish production product deployment or endpoint execution. The rendered viewer shows read-only banner, MANSOQ API label 1.0.0, OAS 3.1, schema link, tag filter and Authorize button. No credentials were entered; endpoint submission is disabled.

Image SHA-256 252087c750d5f3bde5575c84c42266b2d55b7d3b365822be287880a687dde252

  1. Read-only viewer: Requests are disabled in this documentation viewer.
  2. Schema dialect 3.1: OAS 3.1 is the schema dialect; 1.0.0 is the separate API label, not a Git release.
  3. Download contract: The schema link opens the generated contract for the selected source version.
  4. Find a tag: Filter operations by tag such as files, auth or finance.

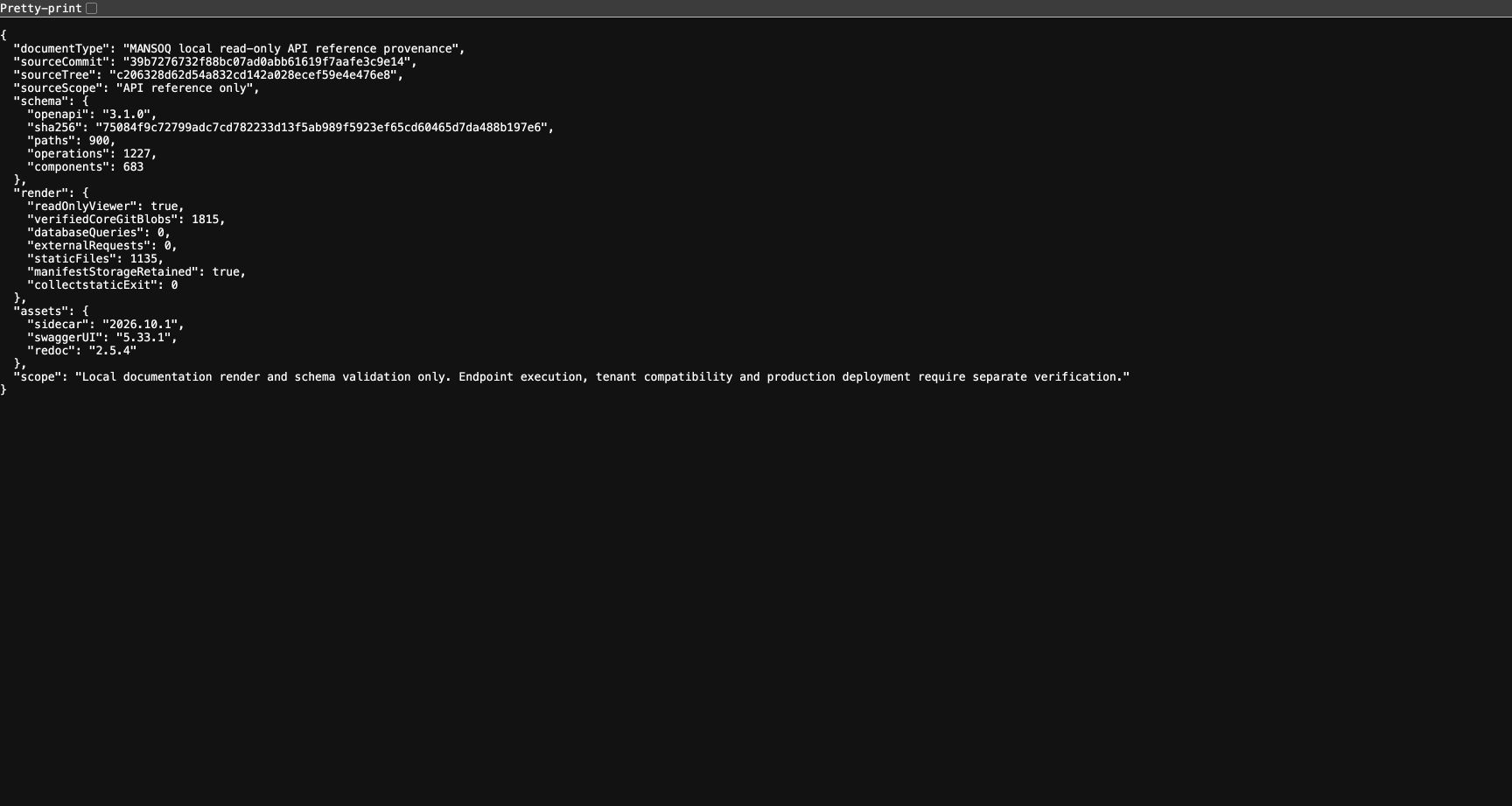

The actual local documentation metadata response shows full commit and source tree, OpenAPI 3.1, the exact schema fingerprint, path/operation/component counts, verified core count, read-only and zero-query flags, and pinned viewer versions. Local filesystem paths are omitted. This is documentation-render provenance, not a HIMS patient-data response or production deployment receipt.1234567
Recorded release 39b72767 · 2026-10-19 · 1728 × 921

Read the privacy-minimized documentation source receipt

Capture details

Fresh genuine 1728×921 native Chrome frame of the privacy-minimized local documentation receipt for exact release 39b72767. No pixels were edited. The original full private receipt and earlier frame are preserved separately.

Image SHA-256 fb12b6ce9985f9712ed8ada1822363dec2d43ebc521a8407615d978ec4fe786d

  1. Exact source release: Compare the full sourceCommit with the documentation release you intend to use.
  2. Exact source tree: The Git source tree identifies the retained committed source.
  3. Schema fingerprint: Compare the complete schema SHA256 with the downloaded contract artifact.
  4. Read-only reference: The actual metadata records a read-only documentation viewer.
  5. Verified core export: This receipt records 1,815 core blobs checked against the commit.
  6. Zero database queries: The documented export rendered without querying application data.
  7. Bounded local scope: This receipt does not establish endpoint execution, tenant compatibility or production deployment.

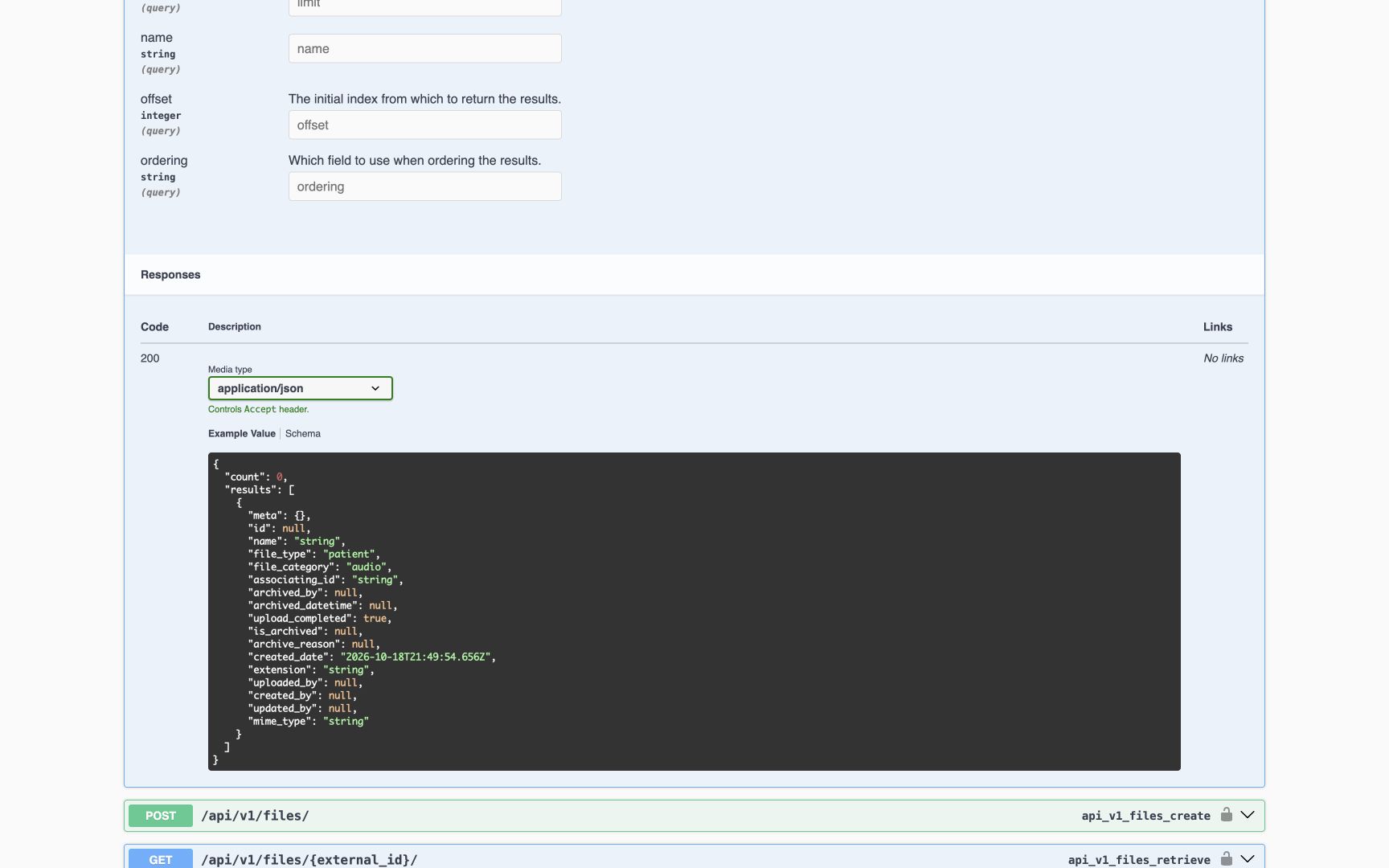

The visible GET files response Example Value shows count and results, plus offset above it. This is a Swagger-generated example, not a saved patient file or actual response body.1234
Recorded release 39b72767 · 2026-10-19 · 1728 × 1080

Read count/results pagination

Capture details

Fresh 1728×1080 Chrome capture of the installed read-only API reference rendered from committed MANSOQ release 39b72767. This local reference does not establish production product deployment or endpoint execution. The visible GET files response Example Value shows count and results, plus offset above it. This is a Swagger-generated example, not a saved patient file or actual response body.

Image SHA-256 7f0f0972273b92115528a0bc5229c75d39c9041912cfc081a8e51bdcd5ff0745

  1. Offset: Offset is the initial result index.
  2. Count: Count is the total matching count in the typed paginator contract.
  3. Results: Read the results array; this paginator does not return next/previous links.
  4. Schema tab: Use Schema to inspect types rather than treating the generated example as live data.

6 of 7 content blocks have reviewed image alignment. Missing overview or prerequisite images remain open.

Before you begin

  • Use API documentation for the exact deployed source version. These fresh images show committed release 39b72767 in a local read-only reference; production deployment is separate.
    The actual local documentation metadata response shows full commit and source tree, OpenAPI 3.1, the exact schema fingerprint, path/operation/component counts, verified core count, read-only and zero-query flags, and pinned viewer versions. Local filesystem paths are omitted. This is documentation-render provenance, not a HIMS patient-data response or production deployment receipt.1234567
    Recorded release 39b72767 · 2026-10-19 · 1728 × 921

    Read the privacy-minimized documentation source receipt

    Capture details

    Fresh genuine 1728×921 native Chrome frame of the privacy-minimized local documentation receipt for exact release 39b72767. No pixels were edited. The original full private receipt and earlier frame are preserved separately.

    Image SHA-256 fb12b6ce9985f9712ed8ada1822363dec2d43ebc521a8407615d978ec4fe786d

    1. Exact source release: Compare the full sourceCommit with the documentation release you intend to use.
    2. Exact source tree: The Git source tree identifies the retained committed source.
    3. Schema fingerprint: Compare the complete schema SHA256 with the downloaded contract artifact.
    4. Read-only reference: The actual metadata records a read-only documentation viewer.
    5. Verified core export: This receipt records 1,815 core blobs checked against the commit.
    6. Zero database queries: The documented export rendered without querying application data.
    7. Bounded local scope: This receipt does not establish endpoint execution, tenant compatibility or production deployment.
    The rendered viewer shows read-only banner, MANSOQ API label 1.0.0, OAS 3.1, schema link, tag filter and Authorize button. No credentials were entered; endpoint submission is disabled.1234
    Recorded release 39b72767 · 2026-10-19 · 1728 × 1080

    Find the local read-only API reference

    Capture details

    Fresh 1728×1080 Chrome capture of the installed read-only API reference rendered from committed MANSOQ release 39b72767. This local reference does not establish production product deployment or endpoint execution. The rendered viewer shows read-only banner, MANSOQ API label 1.0.0, OAS 3.1, schema link, tag filter and Authorize button. No credentials were entered; endpoint submission is disabled.

    Image SHA-256 252087c750d5f3bde5575c84c42266b2d55b7d3b365822be287880a687dde252

    1. Read-only viewer: Requests are disabled in this documentation viewer.
    2. Schema dialect 3.1: OAS 3.1 is the schema dialect; 1.0.0 is the separate API label, not a Git release.
    3. Download contract: The schema link opens the generated contract for the selected source version.
    4. Find a tag: Filter operations by tag such as files, auth or finance.
  • The viewer disables endpoint submission. Use an approved client and authorized sandbox for actual calls; a schema grants no data access.

1. Check the reference version and read-only state

Open the installed Swagger reference in an authorized documentation environment. Confirm the read-only banner. The 1.0.0 label names the API; OAS 3.1 names the schema dialect. Neither identifies the exact application Git release. Use the release metadata and schema hash supplied with the documentation version.

The rendered viewer shows read-only banner, MANSOQ API label 1.0.0, OAS 3.1, schema link, tag filter and Authorize button. No credentials were entered; endpoint submission is disabled.1234
Recorded release 39b72767 · 2026-10-19 · 1728 × 1080

Find the local read-only API reference

Capture details

Fresh 1728×1080 Chrome capture of the installed read-only API reference rendered from committed MANSOQ release 39b72767. This local reference does not establish production product deployment or endpoint execution. The rendered viewer shows read-only banner, MANSOQ API label 1.0.0, OAS 3.1, schema link, tag filter and Authorize button. No credentials were entered; endpoint submission is disabled.

Image SHA-256 252087c750d5f3bde5575c84c42266b2d55b7d3b365822be287880a687dde252

  1. Read-only viewer: Requests are disabled in this documentation viewer.
  2. Schema dialect 3.1: OAS 3.1 is the schema dialect; 1.0.0 is the separate API label, not a Git release.
  3. Download contract: The schema link opens the generated contract for the selected source version.
  4. Find a tag: Filter operations by tag such as files, auth or finance.

2. Find the intended operation

Filter by the visible tag, for example files. Expand the tag, then the exact method/path. Compare required path and query fields, request Schema and response Schema. Authorize is part of the viewer interface; these teaching images do not enter credentials or execute requests.

The rendered viewer shows read-only banner, MANSOQ API label 1.0.0, OAS 3.1, schema link, tag filter and Authorize button. No credentials were entered; endpoint submission is disabled.1234
Recorded release 39b72767 · 2026-10-19 · 1728 × 1080

Find the local read-only API reference

Capture details

Fresh 1728×1080 Chrome capture of the installed read-only API reference rendered from committed MANSOQ release 39b72767. This local reference does not establish production product deployment or endpoint execution. The rendered viewer shows read-only banner, MANSOQ API label 1.0.0, OAS 3.1, schema link, tag filter and Authorize button. No credentials were entered; endpoint submission is disabled.

Image SHA-256 252087c750d5f3bde5575c84c42266b2d55b7d3b365822be287880a687dde252

  1. Read-only viewer: Requests are disabled in this documentation viewer.
  2. Schema dialect 3.1: OAS 3.1 is the schema dialect; 1.0.0 is the separate API label, not a Git release.
  3. Download contract: The schema link opens the generated contract for the selected source version.
  4. Find a tag: Filter operations by tag such as files, auth or finance.

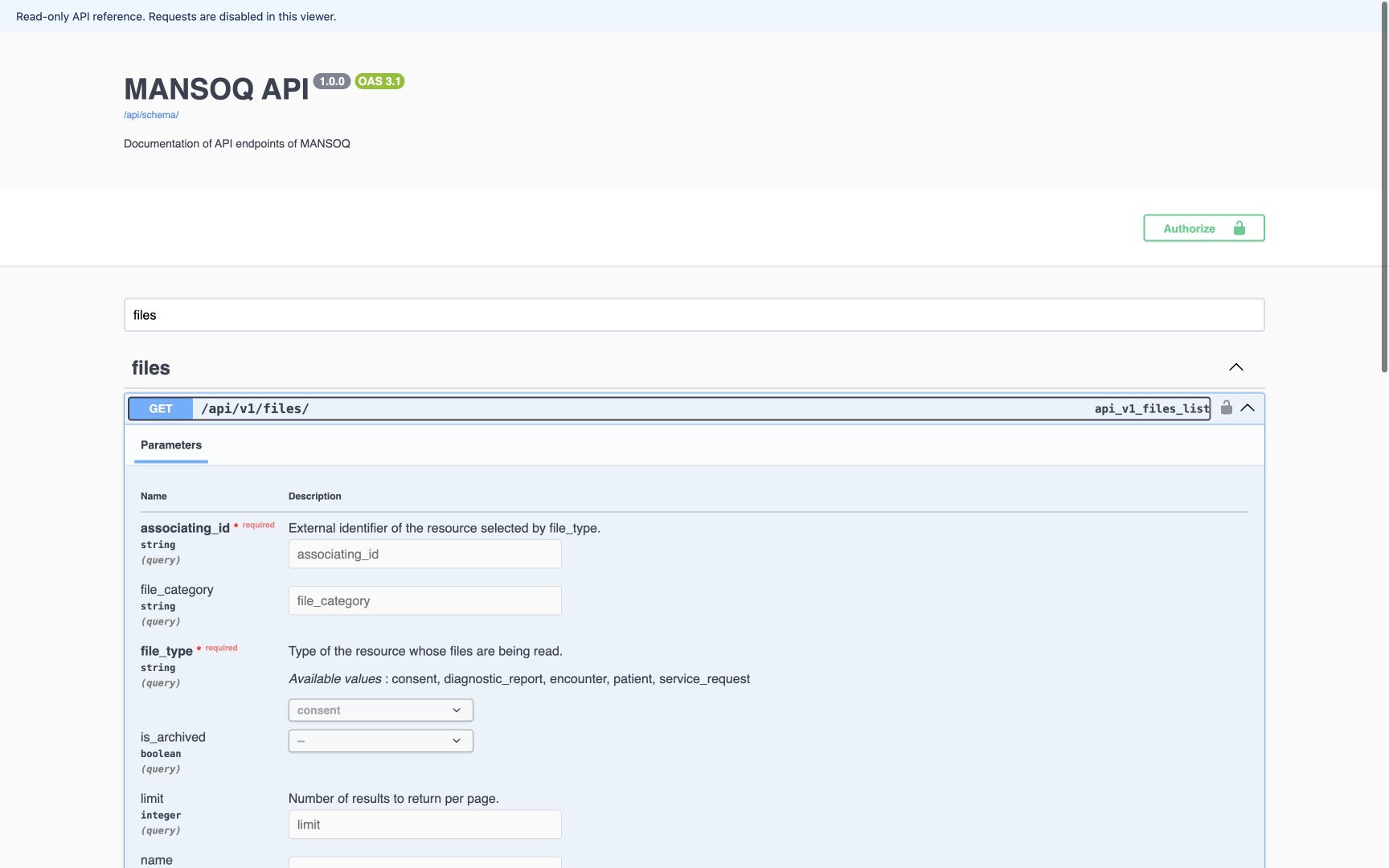

GET /api/v1/files/ is open. associating_id and file_type visibly carry required markers; disabled fields confirm read-only viewer. A valid pair identifies the resource whose files are requested.1234
Recorded release 39b72767 · 2026-10-19 · 1728 × 1080

Identify both required file-list scope fields

Capture details

Fresh 1728×1080 Chrome capture of the installed read-only API reference rendered from committed MANSOQ release 39b72767. This local reference does not establish production product deployment or endpoint execution. GET /api/v1/files/ is open. associating_id and file_type visibly carry required markers; disabled fields confirm read-only viewer. A valid pair identifies the resource whose files are requested.

Image SHA-256 3d5806e1721b4c99bdfd826cb335bff04fe4a9270039d3bd79cf4cef519bf096

  1. Required resource identifier: associating_id must identify the resource selected by file_type.
  2. Required resource type: file_type is required: patient, encounter, consent, diagnostic_report or service_request.
  3. Documented enum: The disabled select shows allowed resource types; it is not an execution control.
  4. Limit: Limit controls page size; max_limit 200 is defined by source and contract checks.

3. Treat examples as generated placeholders

Example Value is produced from the schema. A count of 0 with one illustrated results item is an example shape, not a live database contradiction or a saved result. Actual behavior needs a separate authorized request and independent readback.

The visible GET files response Example Value shows count and results, plus offset above it. This is a Swagger-generated example, not a saved patient file or actual response body.1234
Recorded release 39b72767 · 2026-10-19 · 1728 × 1080

Read count/results pagination

Capture details

Fresh 1728×1080 Chrome capture of the installed read-only API reference rendered from committed MANSOQ release 39b72767. This local reference does not establish production product deployment or endpoint execution. The visible GET files response Example Value shows count and results, plus offset above it. This is a Swagger-generated example, not a saved patient file or actual response body.

Image SHA-256 7f0f0972273b92115528a0bc5229c75d39c9041912cfc081a8e51bdcd5ff0745

  1. Offset: Offset is the initial result index.
  2. Count: Count is the total matching count in the typed paginator contract.
  3. Results: Read the results array; this paginator does not return next/previous links.
  4. Schema tab: Use Schema to inspect types rather than treating the generated example as live data.

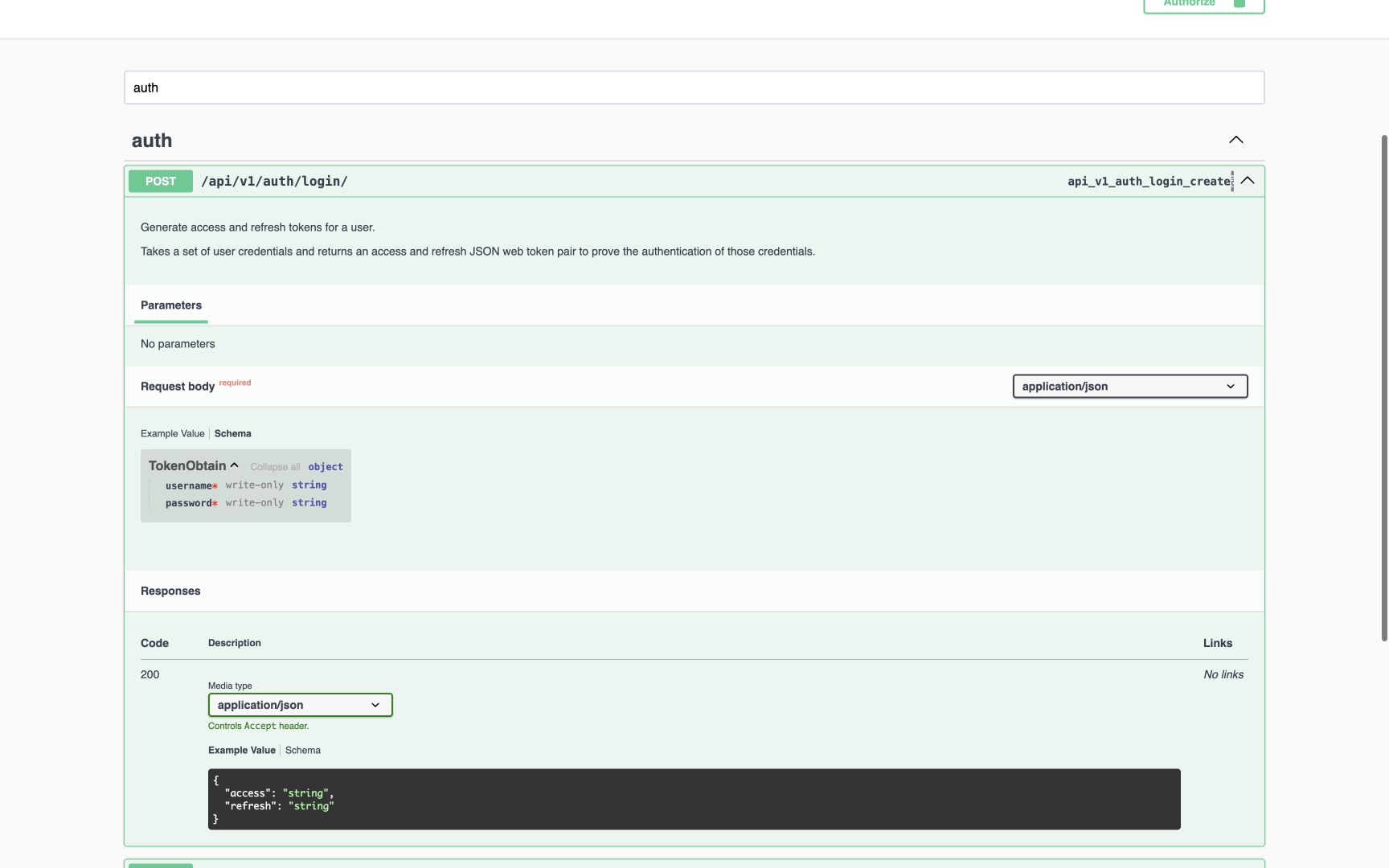

The login Request Schema displays required write-only username and password. Its visible response is a generated access/refresh example containing the literal string placeholder, not real tokens.12345
Recorded release 39b72767 · 2026-10-19 · 1728 × 1080

Read the actual login request

Capture details

Fresh 1728×1080 Chrome capture of the installed read-only API reference rendered from committed MANSOQ release 39b72767. This local reference does not establish production product deployment or endpoint execution. The login Request Schema displays required write-only username and password. Its visible response is a generated access/refresh example containing the literal string placeholder, not real tokens.

Image SHA-256 73b2d5e552c1a24ca87102be1d7673bc934c268cef977c0dae41ea3417869f3a

  1. Login operation: POST /api/v1/auth/login/ is the actual documented operation.
  2. Request Schema: Inspect request properties here.
  3. Username: Required write-only username; do not substitute an undocumented email field.
  4. Password: Required write-only password. No credential is entered into this screenshot.
  5. Generated example: Literal string values are placeholders, not actual JWTs or evidence of a successful login.

4. Use the alternate Redoc reader

The installed Redoc page offers the same versioned contract through search, left-hand tag navigation, a central operation description and a response sample pane. Check the read-only banner and selected contract version. The pictured schema operation has no sample; its No sample text is not an API error or a failed request. The local render loads the pinned hashed Redoc asset and shows no captured console warning/error. Actual endpoint execution remains separate.

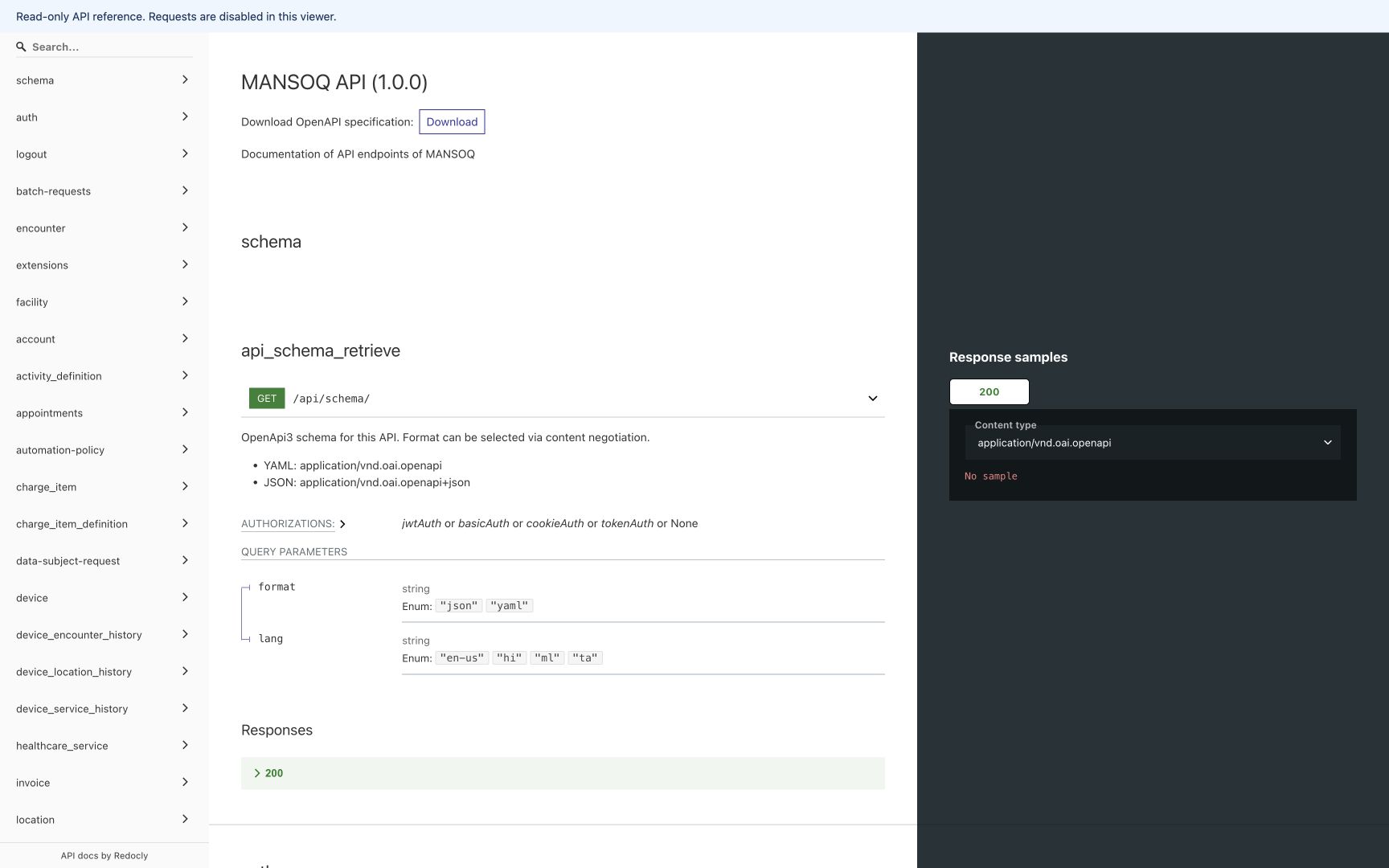

Redoc 2.5.4 renders the same OpenAPI 3.1 contract covering 900 paths using its locally served, pinned asset. The header, search, tag menu, download link, operation details and response sample pane are visible. No request was submitted and no credentials were entered.123456
Recorded release 39b72767 · 2026-10-19 · 1728 × 1080

Use the local Redoc API reader

Capture details

Fresh 1728×1080 Chrome capture of the installed read-only API reference rendered from committed MANSOQ release 39b72767. This local reference does not establish production product deployment or endpoint execution. Redoc 2.5.4 renders the same OpenAPI 3.1 contract covering 900 paths using its locally served, pinned asset. The header, search, tag menu, download link, operation details and response sample pane are visible. No request was submitted and no credentials were entered.

Image SHA-256 ab9a0d76387e94061563a00ecf7f55b439d073b3fa781daa4c0ff963f604c065

  1. Read-only reference: The viewer is intended for contract reading.
  2. Search operations: Use the search field to locate an API topic.
  3. Browse tags: Use the left navigation to choose a documented group.
  4. Download contract: Download the selected source-version schema.
  5. Operation details: Read method/path and parameter scope in the center.
  6. Response sample panel: No sample is shown here because this schema operation has no illustrated sample. Do not treat generated samples as live results.

Source evidence

Every citation uses this exact committed version. The private source repository requires access.
