Set and verify an observation definition unit

Edit an existing Quantity definition, select a returned UCUM unit and verify it on the saved detail.

Facility Admin

Select the installed mg/dL UCUM unit. Actual wide MANSOQ synthetic Set and verify an observation definition unit view.123
Recorded release 39b72767 · 2026-10-18 · 1728 × 921

Select the installed mg/dL UCUM unit

Capture details

Actual 1728 × 921 Chrome pixels; pinned source 39b72767. Set and verify an observation definition unit

Image SHA-256 36cb16ad4a7b1412db9701f0530263b31b1103f059cf218af3a60a8a2448c68e

  1. Search mg/dL: Look up the installed unit.
  2. Returned unit: Choose the actual mg/dL result.
  3. No interpretation: This update does not configure diagnostic ranges.
Verify saved permitted UCUM unit on the same definition. Actual wide MANSOQ synthetic Set and verify an observation definition unit view.123
Recorded release 39b72767 · 2026-10-18 · 1728 × 921

Verify saved permitted UCUM unit on the same definition

Capture details

Actual 1728 × 921 Chrome pixels; pinned source 39b72767. Set and verify an observation definition unit

Image SHA-256 0ce8a714566b9a78230c19b8a78d432f193f7e04e5079ca07487ecd5d66137a8

  1. Saved permitted unit: Confirm http://unitsofmeasure.org and mg/dL.
  2. Quantity retained: The data type remains unchanged.
  3. Same Active record: No extra observation definition is created.

10 of 10 content blocks have reviewed image alignment. Missing overview or prerequisite images remain open.

Before you begin

  • Use your existing authorized Facility Admin account and select the intended Laboratory. The observed synthetic account already has catalogue read/write rights; no role or membership is changed.
    Open Edit on the saved synthetic observation definition. Actual wide MANSOQ synthetic Set and verify an observation definition unit view.12
    Recorded release 39b72767 · 2026-10-18 · 1728 × 921

    Open Edit on the saved synthetic observation definition

    Capture details

    Actual 1728 × 921 Chrome pixels; pinned source 39b72767. Set and verify an observation definition unit

    Image SHA-256 9a8a881657156af107e0f1b97fd3aa44b900bcbea87f5450aff10684dc1f7b0f

    1. Edit: Open the saved definition for a unit update.
    2. Same Active record: Preserve the existing identity and status.
  • This example stores reusable synthetic catalogue metadata. It does not create a patient observation, laboratory order, sample collection, bill or external transaction.
    Open Edit on the saved synthetic observation definition. Actual wide MANSOQ synthetic Set and verify an observation definition unit view.12
    Recorded release 39b72767 · 2026-10-18 · 1728 × 921

    Open Edit on the saved synthetic observation definition

    Capture details

    Actual 1728 × 921 Chrome pixels; pinned source 39b72767. Set and verify an observation definition unit

    Image SHA-256 9a8a881657156af107e0f1b97fd3aa44b900bcbea87f5450aff10684dc1f7b0f

    1. Edit: Open the saved definition for a unit update.
    2. Same Active record: Preserve the existing identity and status.
    Review the unit-only update and save. Actual wide MANSOQ synthetic Set and verify an observation definition unit view.123
    Recorded release 39b72767 · 2026-10-18 · 1728 × 921

    Review the unit-only update and save

    Capture details

    Actual 1728 × 921 Chrome pixels; pinned source 39b72767. Set and verify an observation definition unit

    Image SHA-256 2262e06b617a1f7ba1e3f3a48528750f7b01843b20a68664a3e48a8206727e8d

    1. mg/dL selected: Confirm the lookup-selected unit.
    2. Save: Save this one unit update.
    3. No interpretations: No clinical interpretation rule is configured.
  • Choose the intended saved Quantity definition first. This lesson continues with the same synthetic observation from the base guide.
    Open Edit on the saved synthetic observation definition. Actual wide MANSOQ synthetic Set and verify an observation definition unit view.12
    Recorded release 39b72767 · 2026-10-18 · 1728 × 921

    Open Edit on the saved synthetic observation definition

    Capture details

    Actual 1728 × 921 Chrome pixels; pinned source 39b72767. Set and verify an observation definition unit

    Image SHA-256 9a8a881657156af107e0f1b97fd3aa44b900bcbea87f5450aff10684dc1f7b0f

    1. Edit: Open the saved definition for a unit update.
    2. Same Active record: Preserve the existing identity and status.

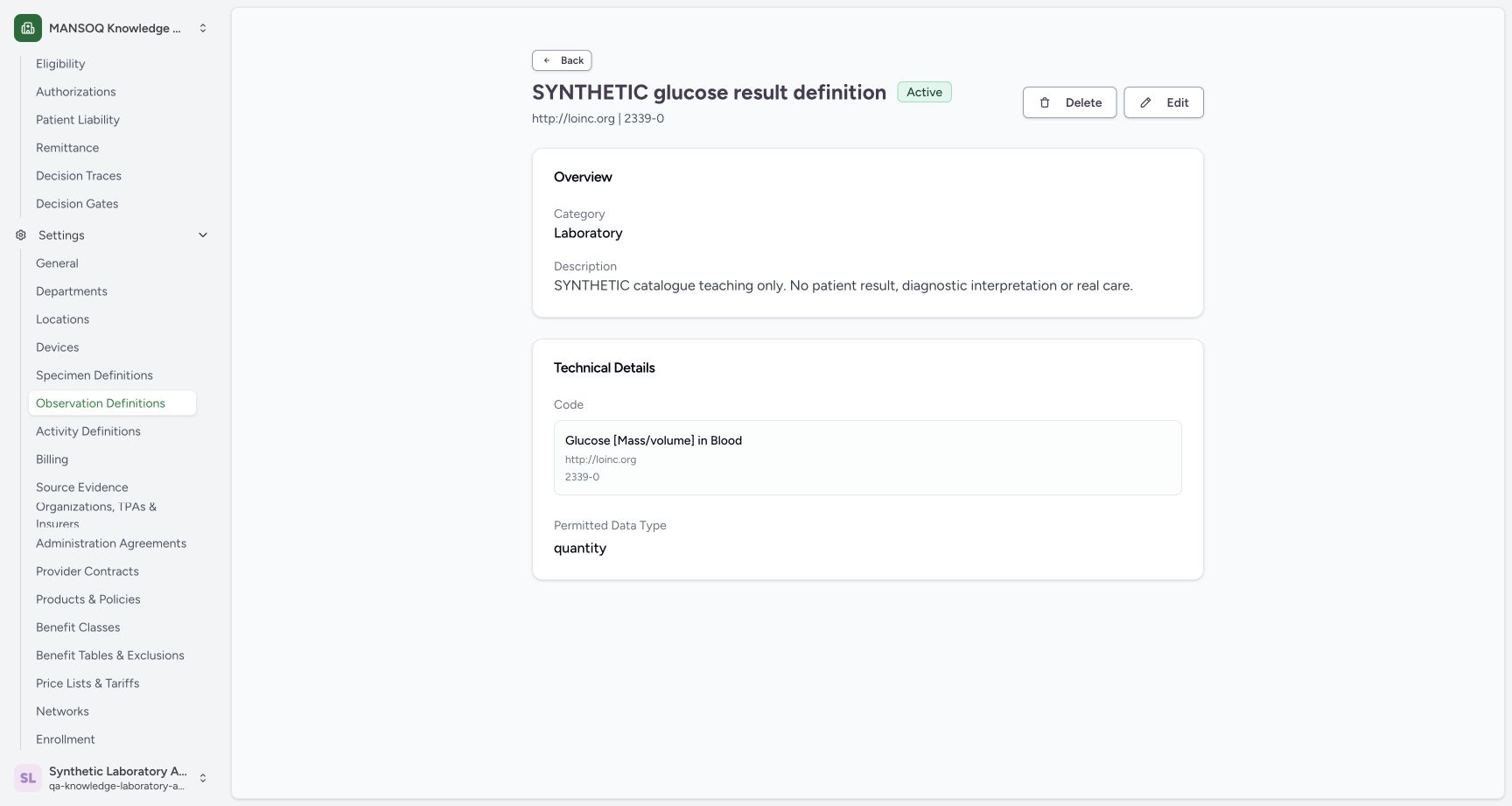

1. Open Edit on the saved definition

Confirm the existing synthetic title, Active, Laboratory, LOINC 2339-0 and Quantity data type. Use Edit on that saved definition.

Open Edit on the saved synthetic observation definition. Actual wide MANSOQ synthetic Set and verify an observation definition unit view.12
Recorded release 39b72767 · 2026-10-18 · 1728 × 921

Open Edit on the saved synthetic observation definition

Capture details

Actual 1728 × 921 Chrome pixels; pinned source 39b72767. Set and verify an observation definition unit

Image SHA-256 9a8a881657156af107e0f1b97fd3aa44b900bcbea87f5450aff10684dc1f7b0f

  1. Edit: Open the saved definition for a unit update.
  2. Same Active record: Preserve the existing identity and status.

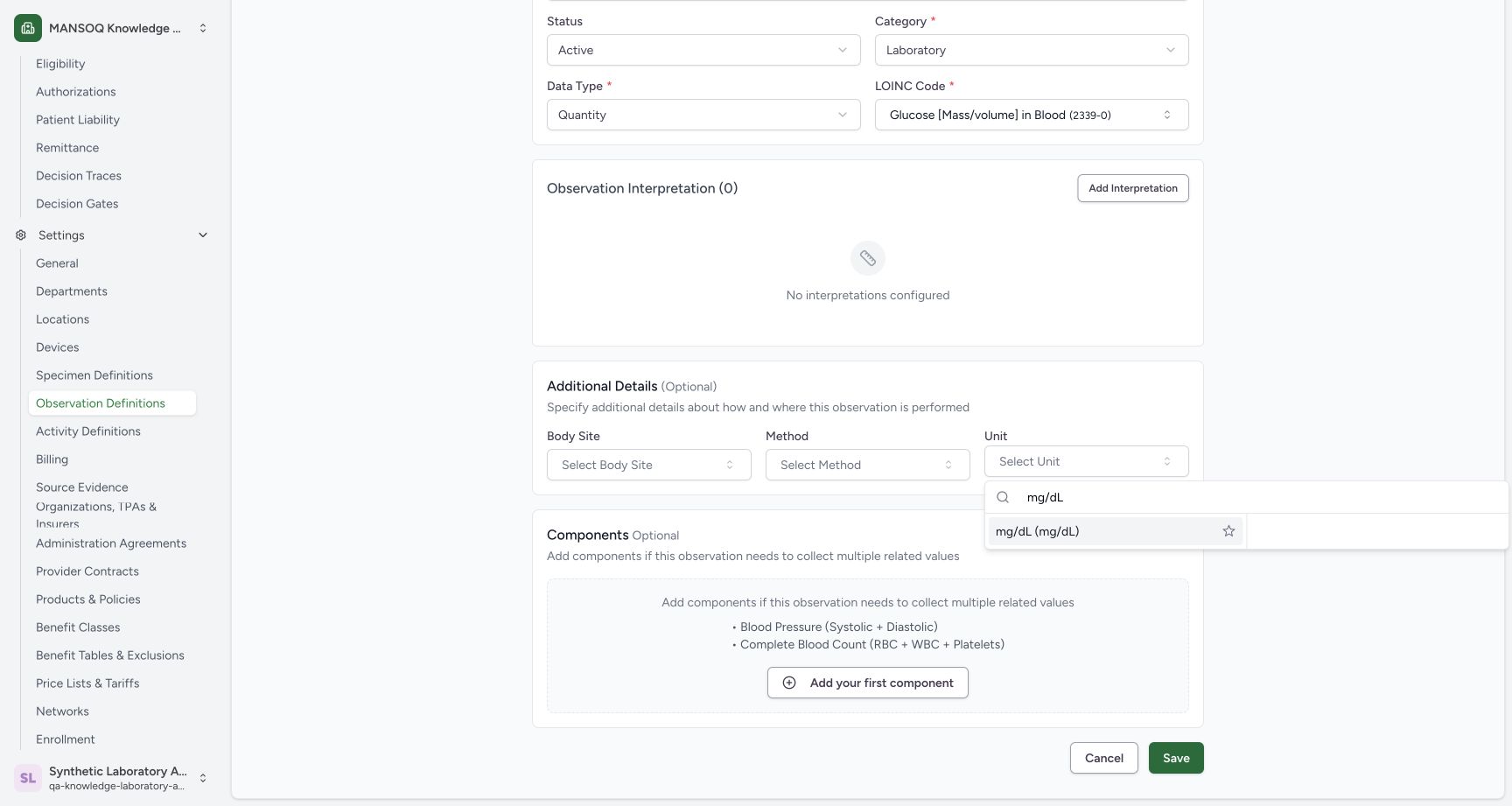

2. Choose an installed UCUM unit

Under Additional Details, open Unit and search mg/dL. Select the actually returned mg/dL (mg/dL) choice. The interpretation remains empty.

Select the installed mg/dL UCUM unit. Actual wide MANSOQ synthetic Set and verify an observation definition unit view.123
Recorded release 39b72767 · 2026-10-18 · 1728 × 921

Select the installed mg/dL UCUM unit

Capture details

Actual 1728 × 921 Chrome pixels; pinned source 39b72767. Set and verify an observation definition unit

Image SHA-256 36cb16ad4a7b1412db9701f0530263b31b1103f059cf218af3a60a8a2448c68e

  1. Search mg/dL: Look up the installed unit.
  2. Returned unit: Choose the actual mg/dL result.
  3. No interpretation: This update does not configure diagnostic ranges.

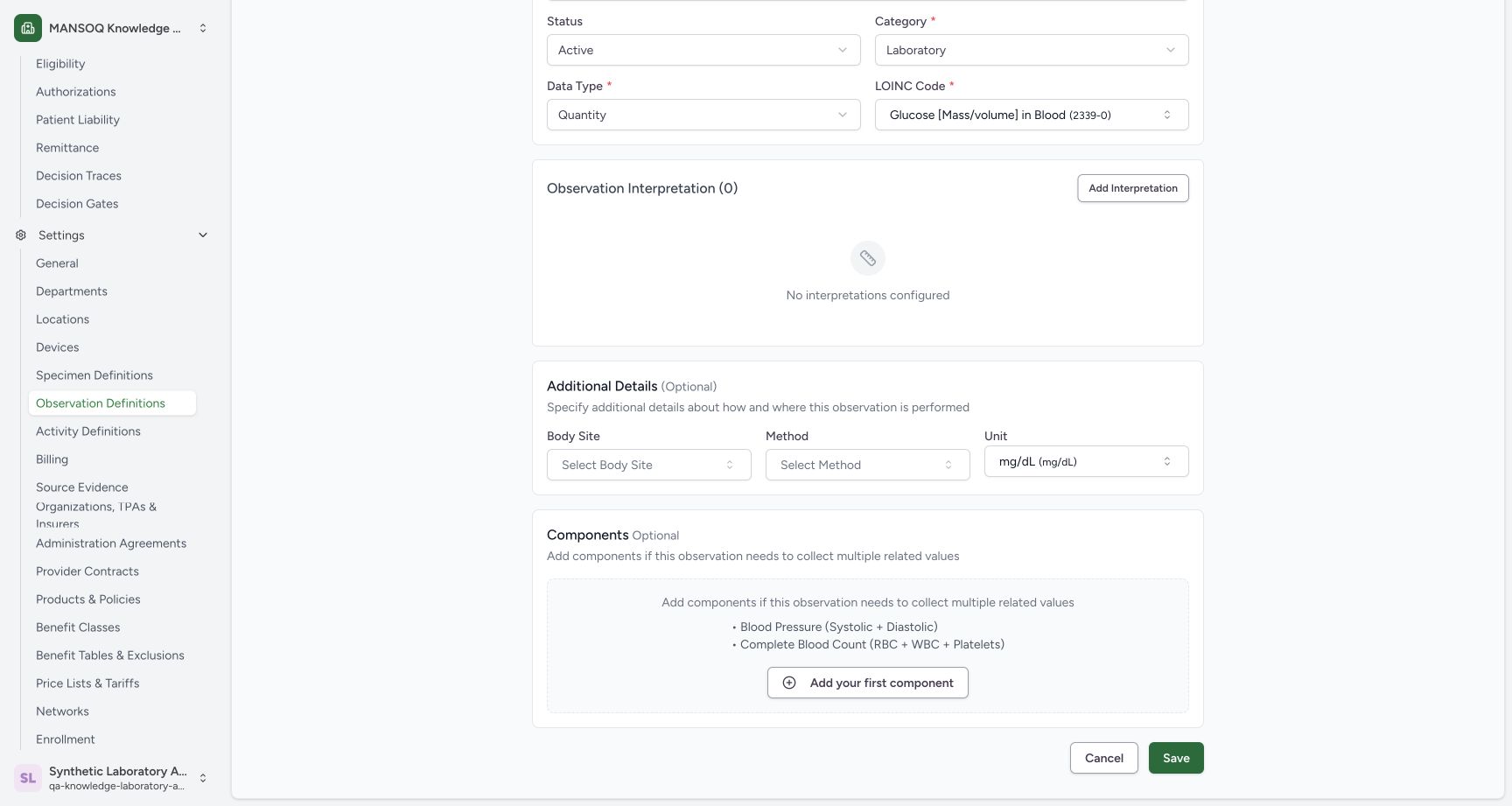

3. Review the unit-only update and save

Confirm mg/dL is selected while Active, Laboratory, Quantity and the LOINC identity remain unchanged. Leave Body Site, Method, interpretation and Components unconfigured. Use Save once.

Review the unit-only update and save. Actual wide MANSOQ synthetic Set and verify an observation definition unit view.123
Recorded release 39b72767 · 2026-10-18 · 1728 × 921

Review the unit-only update and save

Capture details

Actual 1728 × 921 Chrome pixels; pinned source 39b72767. Set and verify an observation definition unit

Image SHA-256 2262e06b617a1f7ba1e3f3a48528750f7b01843b20a68664a3e48a8206727e8d

  1. mg/dL selected: Confirm the lookup-selected unit.
  2. Save: Save this one unit update.
  3. No interpretations: No clinical interpretation rule is configured.

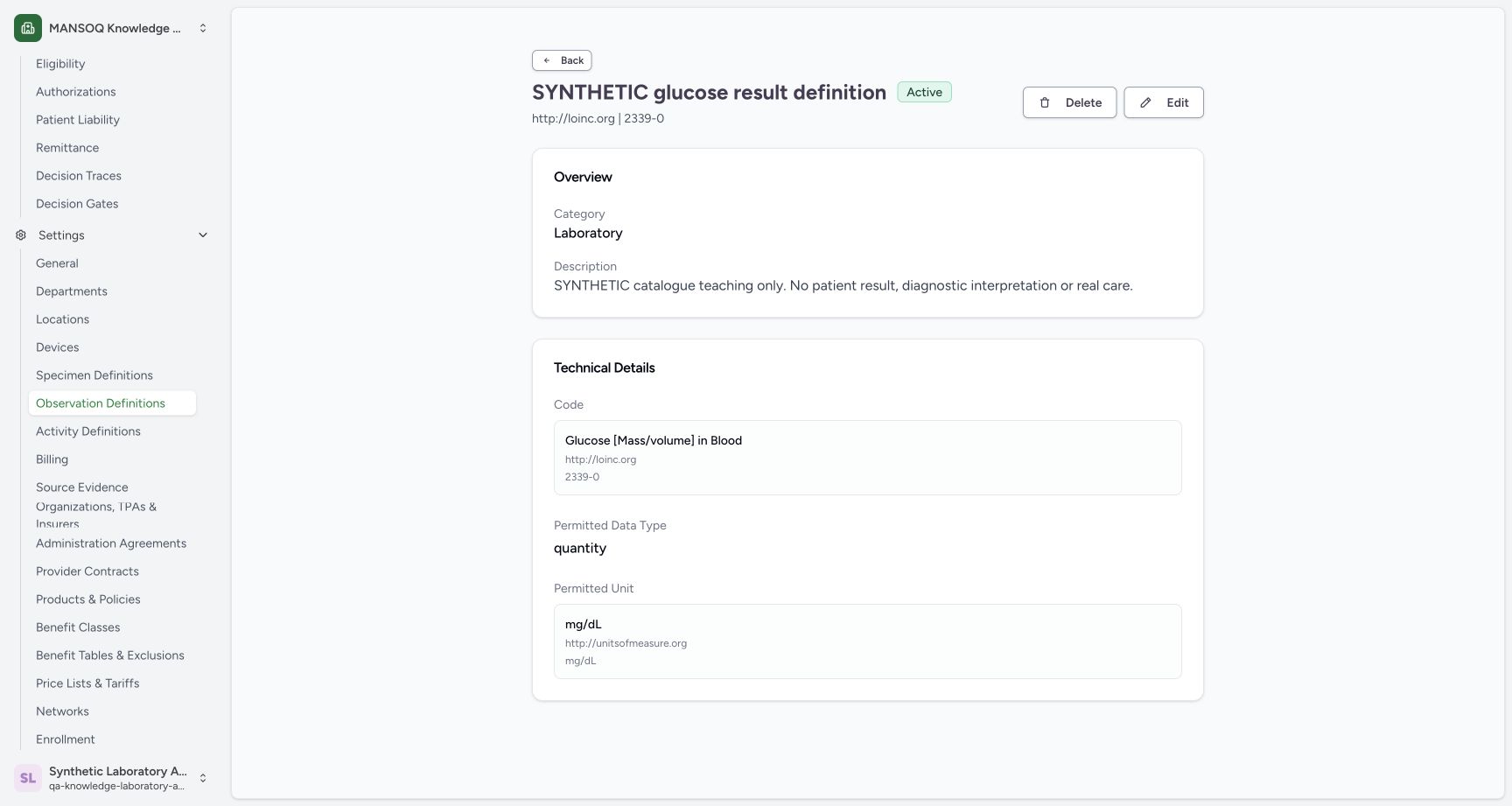

4. Verify the saved permitted unit

On the same saved detail, confirm Permitted Unit → mg/dL, system http://unitsofmeasure.org and code mg/dL. Independent normal readback confirms the same UUID and unchanged core fields; no new definition or patient result is created.

Verify saved permitted UCUM unit on the same definition. Actual wide MANSOQ synthetic Set and verify an observation definition unit view.123
Recorded release 39b72767 · 2026-10-18 · 1728 × 921

Verify saved permitted UCUM unit on the same definition

Capture details

Actual 1728 × 921 Chrome pixels; pinned source 39b72767. Set and verify an observation definition unit

Image SHA-256 0ce8a714566b9a78230c19b8a78d432f193f7e04e5079ca07487ecd5d66137a8

  1. Saved permitted unit: Confirm http://unitsofmeasure.org and mg/dL.
  2. Quantity retained: The data type remains unchanged.
  3. Same Active record: No extra observation definition is created.

Definitions and patient results

An Observation Definition describes reusable metadata such as its classification, value type, coding and permitted unit. Creating or changing this definition does not record a patient result or configure a medical interpretation unless a separate interpretation is deliberately added.

Review the unit-only update and save. Actual wide MANSOQ synthetic Set and verify an observation definition unit view.123
Recorded release 39b72767 · 2026-10-18 · 1728 × 921

Review the unit-only update and save

Capture details

Actual 1728 × 921 Chrome pixels; pinned source 39b72767. Set and verify an observation definition unit

Image SHA-256 2262e06b617a1f7ba1e3f3a48528750f7b01843b20a68664a3e48a8206727e8d

  1. mg/dL selected: Confirm the lookup-selected unit.
  2. Save: Save this one unit update.
  3. No interpretations: No clinical interpretation rule is configured.
Verify saved permitted UCUM unit on the same definition. Actual wide MANSOQ synthetic Set and verify an observation definition unit view.123
Recorded release 39b72767 · 2026-10-18 · 1728 × 921

Verify saved permitted UCUM unit on the same definition

Capture details

Actual 1728 × 921 Chrome pixels; pinned source 39b72767. Set and verify an observation definition unit

Image SHA-256 0ce8a714566b9a78230c19b8a78d432f193f7e04e5079ca07487ecd5d66137a8

  1. Saved permitted unit: Confirm http://unitsofmeasure.org and mg/dL.
  2. Quantity retained: The data type remains unchanged.
  3. Same Active record: No extra observation definition is created.

Observed role and version

These actual desktop screenshots use one existing Laboratory Facility Admin on the committed 39b72767 training version. Other roles, facilities, data types, categories and optional branches require their own verification.

Open Edit on the saved synthetic observation definition. Actual wide MANSOQ synthetic Set and verify an observation definition unit view.12
Recorded release 39b72767 · 2026-10-18 · 1728 × 921

Open Edit on the saved synthetic observation definition

Capture details

Actual 1728 × 921 Chrome pixels; pinned source 39b72767. Set and verify an observation definition unit

Image SHA-256 9a8a881657156af107e0f1b97fd3aa44b900bcbea87f5450aff10684dc1f7b0f

  1. Edit: Open the saved definition for a unit update.
  2. Same Active record: Preserve the existing identity and status.
Verify saved permitted UCUM unit on the same definition. Actual wide MANSOQ synthetic Set and verify an observation definition unit view.123
Recorded release 39b72767 · 2026-10-18 · 1728 × 921

Verify saved permitted UCUM unit on the same definition

Capture details

Actual 1728 × 921 Chrome pixels; pinned source 39b72767. Set and verify an observation definition unit

Image SHA-256 0ce8a714566b9a78230c19b8a78d432f193f7e04e5079ca07487ecd5d66137a8

  1. Saved permitted unit: Confirm http://unitsofmeasure.org and mg/dL.
  2. Quantity retained: The data type remains unchanged.
  3. Same Active record: No extra observation definition is created.

Source evidence

Every citation uses this exact committed version. The private source repository requires access.
