Scheduling and appointments · VERSION ba551c1d

Filter and clear the Board history status groups

Inspect the Non Fulfilled group, show Cancelled alone or alongside Rescheduled, and remove the actual filter chips while preserving saved history.

Staff

Recorded product version ba551c1d

These lessons apply to their recorded version and observed role. Check local permissions and configuration. A qualified lesson does not establish complete product or facility coverage.

Version, screenshot scope and limits

Full product version: ba551c1d67031248136fd2016afe227b5fc994bd

Twenty-nine bounded medication, nutrition, Doctor diagnosis/symptom, Staff appointment and IT print-configuration lessons, with 251 genuine wide application/native-output frames and 311 reviewed instructional blocks. Existing Nurse/Doctor users in one synthetic Polyclinic demonstrate medication batch entry, nutrition intake statuses, correction, completion, request stopping and saved chart/PDF outcomes. Existing Doctor users demonstrate diagnosis creation, same-record lifecycle/correction and a new current-encounter copy from a separately prepared fictional prior source. The Doctor also reviews and copies a prior symptom, distinguishes source/current authors and chosen encounter from a read-only preview, then returns to current work. Further symptom lessons show installed terminology lookup, unsaved draft removal, absolute/relative calendar onset, explicit clinical-field review, same-record lifecycle/correction, retained disabled error records and saved current authorship. The observed all-row symptom-upsert modification-time boundary and ambiguous cached selector are disclosed. Known filtered/stale diagnosis history, pre-save row-identity and date-only copy limits are explicit. Existing non-superuser Staff in one assigned fictional Clinic demonstrates private future availability, required-field and slot validation, partial/full-day exceptions, booking, rescheduling, cancellation, retained patient-booking history, Board/List/date/practitioner filtering, phone/name patient filtering with known-year identity verification, removable history-status chips and actual one-/two-row native Chrome local PDF output. The retained empty-list Print failure and safe reload recovery are explicitly pictured; numeric-token sorting is not qualified by missing-token examples. A separately identified existing local training IT setup actor corrects one stale fictional template logo URL; this does not qualify other administrator roles. Ordinary authorized readbacks verify persisted records and preservation. Known same-product/PRN chart grouping, abbreviated event previews and all-ended chart navigation limits are taught as observed in this exact source version. Other branches, resource types, roles, facilities, clinical suitability and full product production readiness remain unqualified.

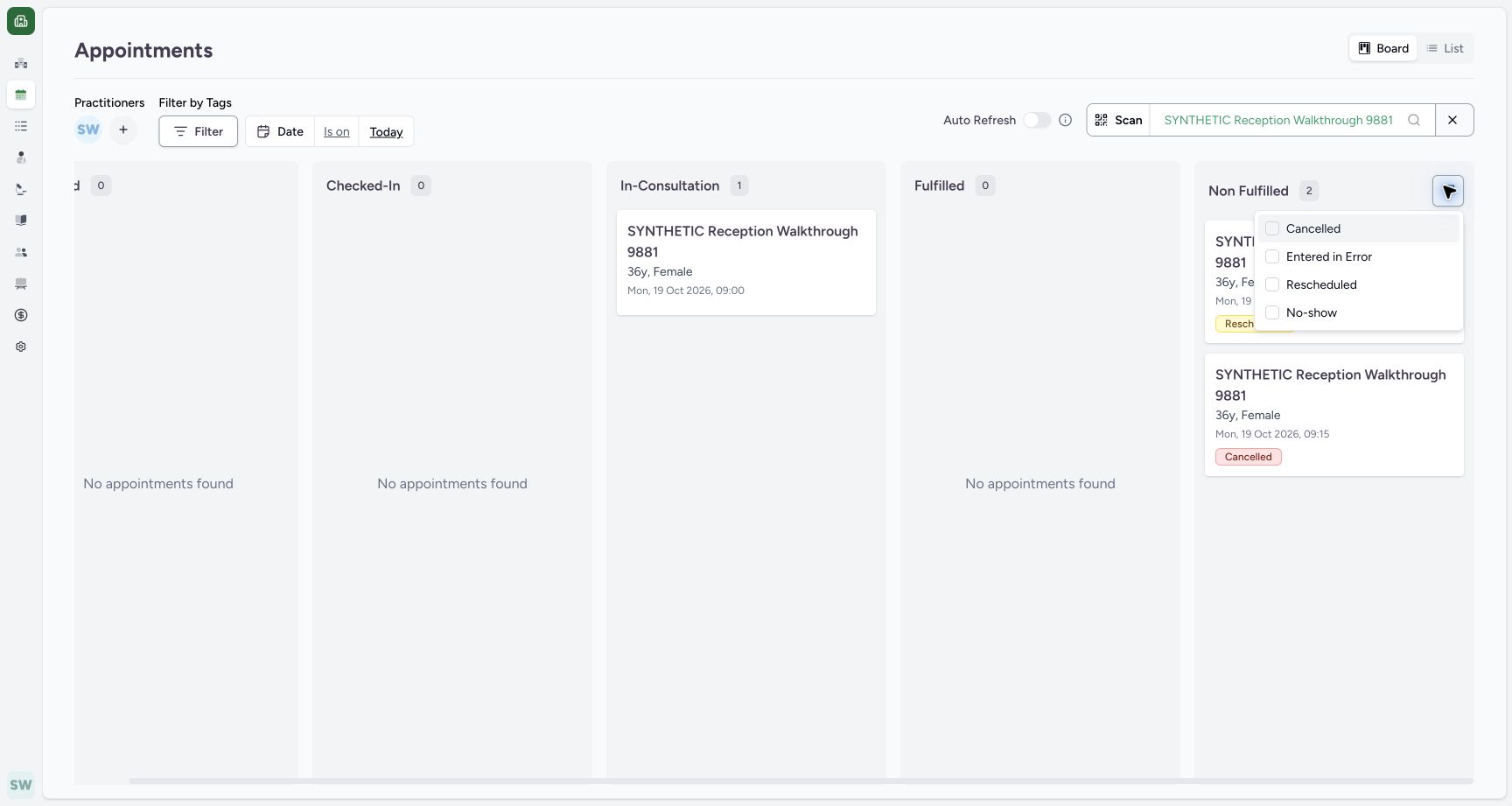

Open the history status menu. Actual synthetic Clinic Staff session. — **Recorded release ba551c1d · 2026-10-19T00:51:21.601Z · 1728 × 921**
Open the history status menu
Capture details
Exact committed ba551 application, normal existing Staff in its assigned fictional Clinic. Native PDF controls are real Chrome/macOS local output.
Image SHA-256 `de3bff85c6e9b6dcf29755b3418f41ce4ee357871ae5cb0ff8deca2310846952`
**Group filter**: Open the Non Fulfilled group filter.
**Cancelled**: Select this filter to inspect only Cancelled history.
**Rescheduled**: This is a separate selectable filter.

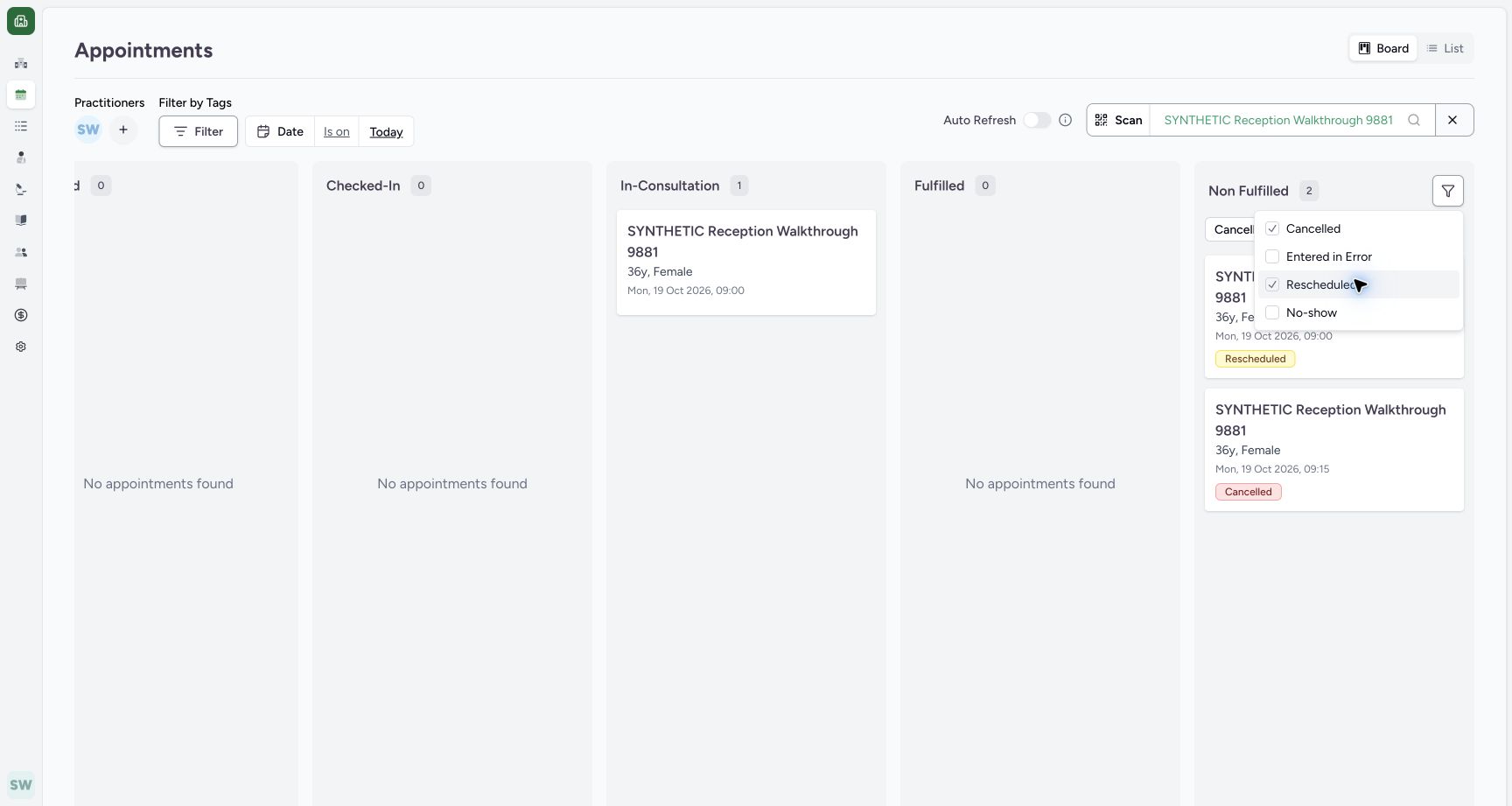

Combine two history filters. Actual synthetic Clinic Staff session. — **Recorded release ba551c1d · 2026-10-19T00:51:33.355Z · 1728 × 921**
Combine two history filters
Capture details
Exact committed ba551 application, normal existing Staff in its assigned fictional Clinic. Native PDF controls are real Chrome/macOS local output.
Image SHA-256 `1b79b12ebf0ad1e8f3ee1465c221ef033b49029d1a3833ccd67521cb17abc9c5`
**Rescheduled checked**: Select Rescheduled alongside Cancelled.
**Two matching cards**: The retained Rescheduled and Cancelled cards are shown.

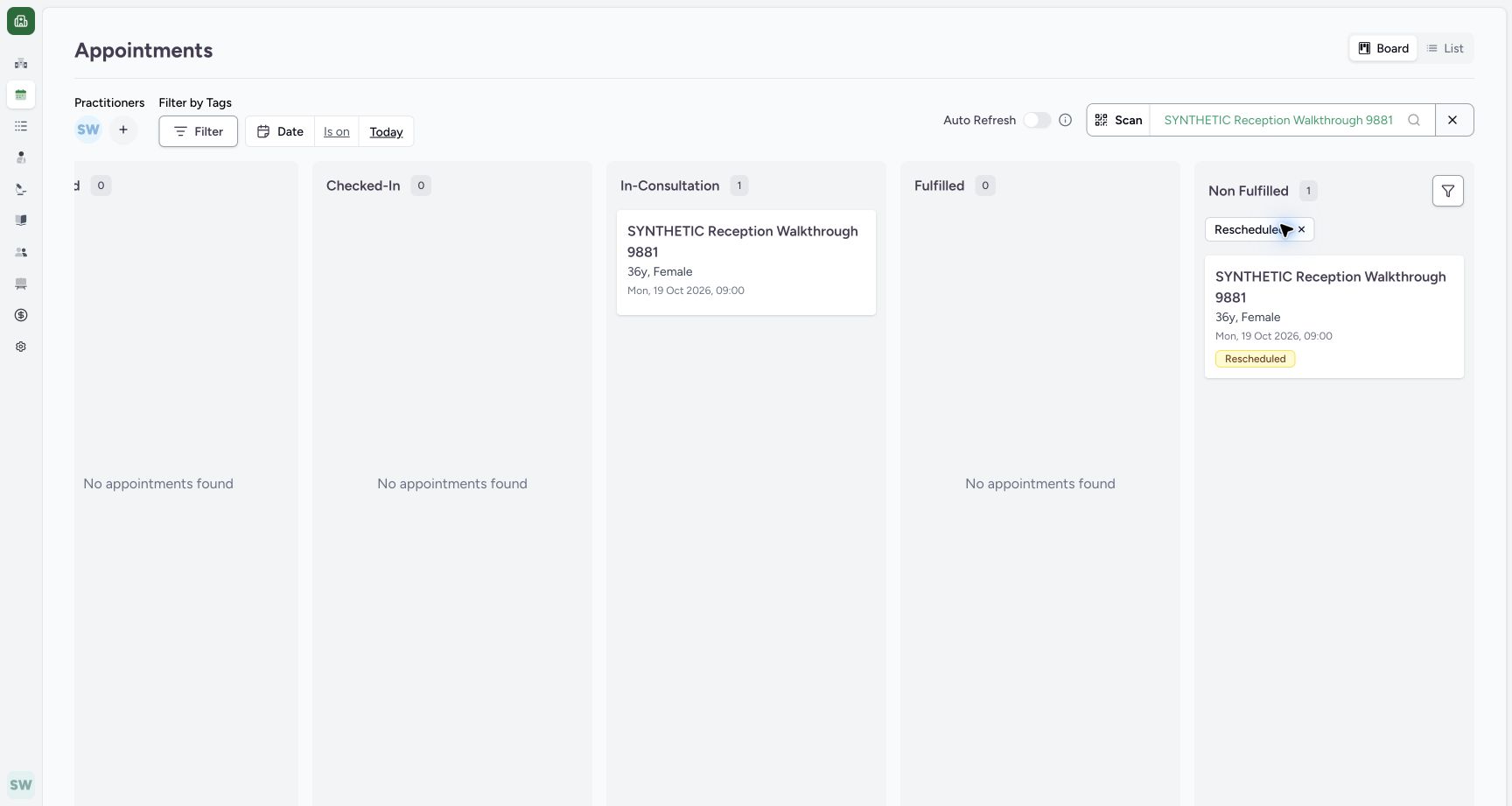

Read the remaining Rescheduled filter. Actual synthetic Clinic Staff session. — **Recorded release ba551c1d · 2026-10-19T00:51:42.500Z · 1728 × 921**
Read the remaining Rescheduled filter
Capture details
Exact committed ba551 application, normal existing Staff in its assigned fictional Clinic. Native PDF controls are real Chrome/macOS local output.
Image SHA-256 `0551f34a78849e7caf5408a6cb3e4237a098f593fc18397ec91a868163044d86`
**Rescheduled X**: Remove the last status chip to restore the whole group.
**Rescheduled card**: Only the matching retained card is shown while this filter is active.

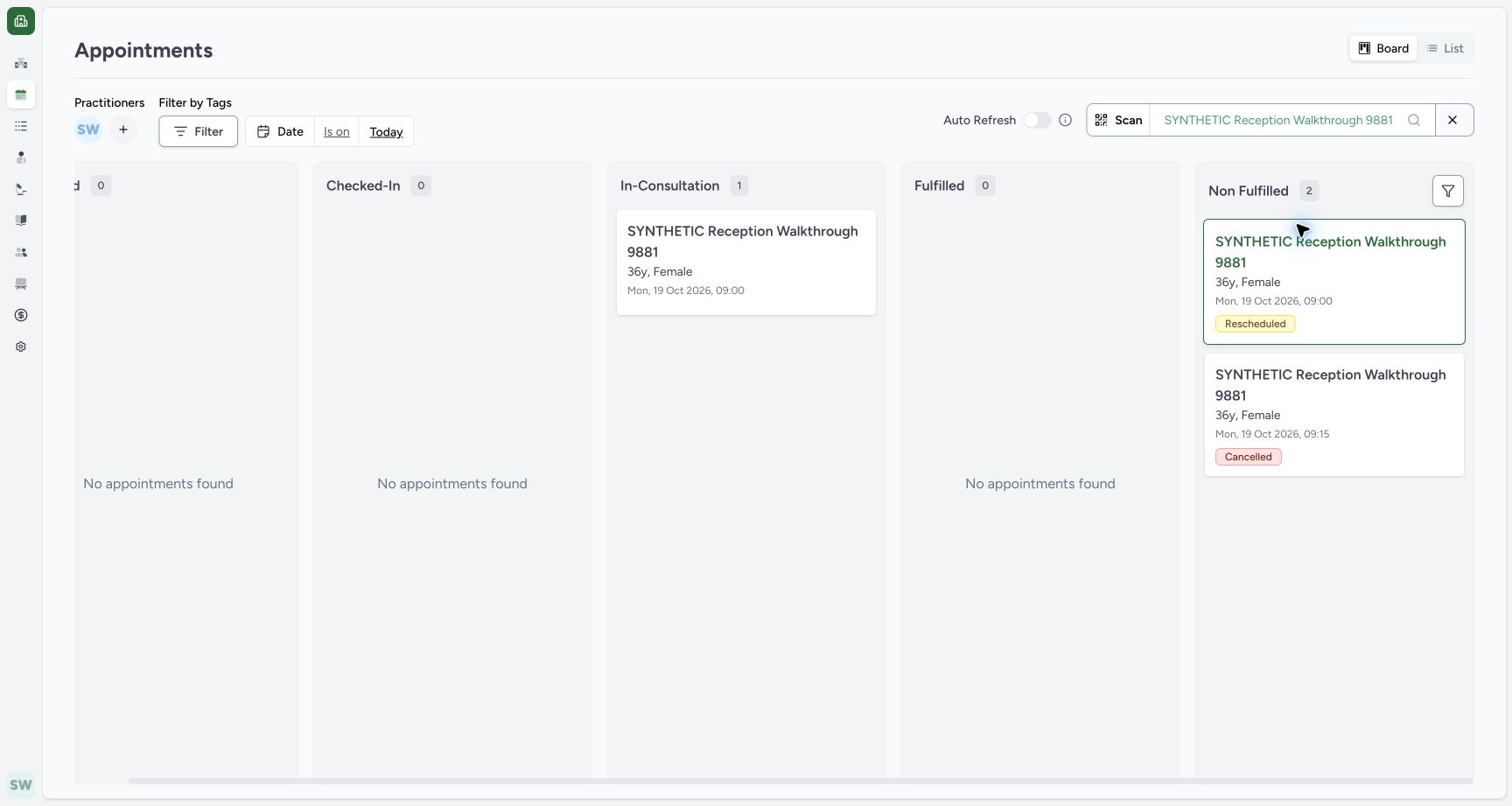

Verify both history cards return. Actual synthetic Clinic Staff session. — **Recorded release ba551c1d · 2026-10-19T00:51:50.895Z · 1728 × 921**
Verify both history cards return
Capture details
Exact committed ba551 application, normal existing Staff in its assigned fictional Clinic. Native PDF controls are real Chrome/macOS local output.
Image SHA-256 `45f8bf9aff4a4463f9b386ff6269616b1c0a92c74bed5b8d54ac53a845c30fa2`
**Group count 2**: No status chips remain; both history cards return.
**List**: Switch to List for batch printing.

8 of 8 content blocks have reviewed image alignment. Missing overview or prerequisite images remain open.

Before you begin

Start on the pictured current-day Board with the intended Doctor and synthetic patient selected. The existing Non Fulfilled history contains one Rescheduled and one Cancelled appointment.
12

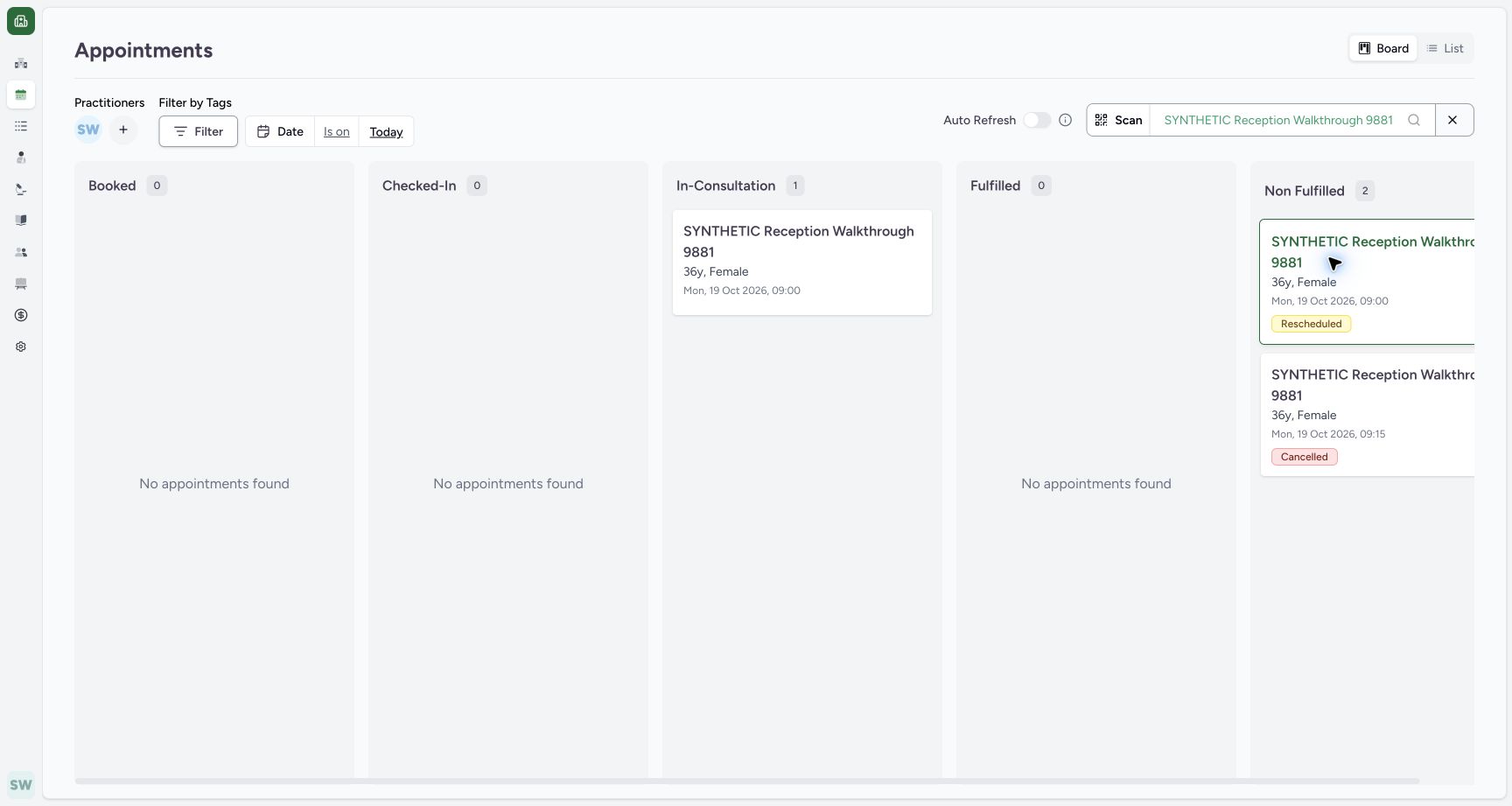

Recorded release ba551c1d · 2026-10-19T00:51:16.497Z · 1728 × 921
Expose the right-hand Board group controls
Capture details
Exact committed ba551 application, normal existing Staff in its assigned fictional Clinic. Native PDF controls are real Chrome/macOS local output.
Image SHA-256 9b2c6cb65f53edabb9c5ad6173ff7248bdfb2a8afd198b63984d6eeb1ee641ce
1. Horizontal scrollbar: Scroll the Board to the right if the Non Fulfilled group control is outside the viewport.
2. Patient retained: The patient is selected again.

1. Open the actual group filter

If the right edge of Non Fulfilled is outside the viewport, use the Board horizontal scrollbar to reveal it. Open the group filter in its heading. The menu lists Cancelled, Entered in Error, Rescheduled and No-show as filter choices.

Expose the right-hand Board group controls. Actual synthetic Clinic Staff session. — **Recorded release ba551c1d · 2026-10-19T00:51:16.497Z · 1728 × 921**
Expose the right-hand Board group controls
Capture details
Exact committed ba551 application, normal existing Staff in its assigned fictional Clinic. Native PDF controls are real Chrome/macOS local output.
Image SHA-256 `9b2c6cb65f53edabb9c5ad6173ff7248bdfb2a8afd198b63984d6eeb1ee641ce`
**Horizontal scrollbar**: Scroll the Board to the right if the Non Fulfilled group control is outside the viewport.
**Patient retained**: The patient is selected again.

2. Inspect Cancelled alone

Select Cancelled. Its check appears, the group count becomes 1, and the existing Cancelled history card remains.

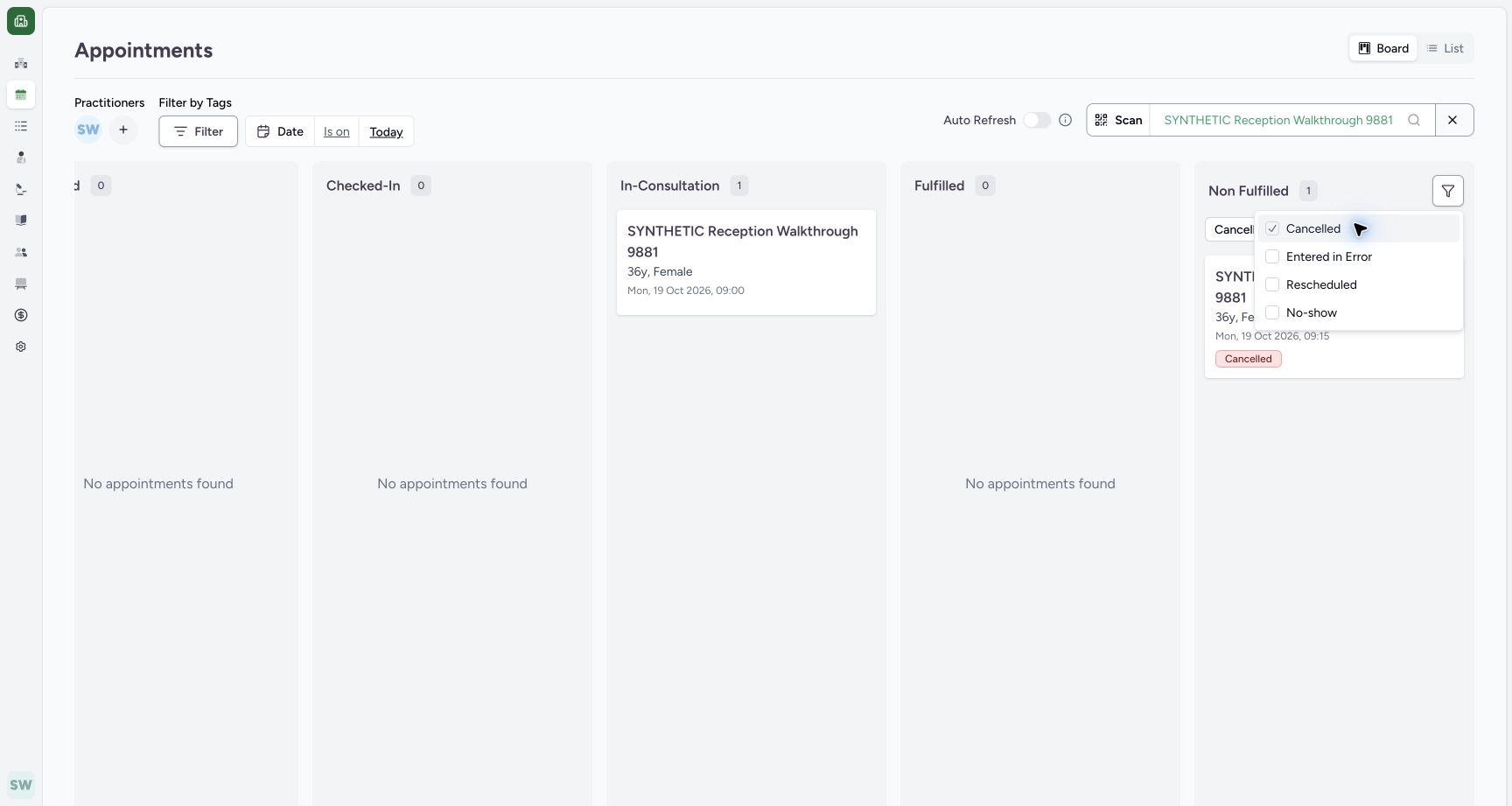

Read the Cancelled-only result. Actual synthetic Clinic Staff session. — **Recorded release ba551c1d · 2026-10-19T00:51:28.748Z · 1728 × 921**
Read the Cancelled-only result
Capture details
Exact committed ba551 application, normal existing Staff in its assigned fictional Clinic. Native PDF controls are real Chrome/macOS local output.
Image SHA-256 `0185b3b5c5d7ac36c604665e1a0f303bf8f51a0524c6741a62e97976f42f8dec`
**Cancelled checked**: Only Cancelled is checked.
**Retained Cancelled card**: One matching history card remains.

3. Combine two selected statuses

Also select Rescheduled. Both checks are present and the group shows the two retained history cards.

4. Remove one status chip

Close the menu and use the X on the Cancelled chip. Only the Rescheduled chip and matching history card remain.

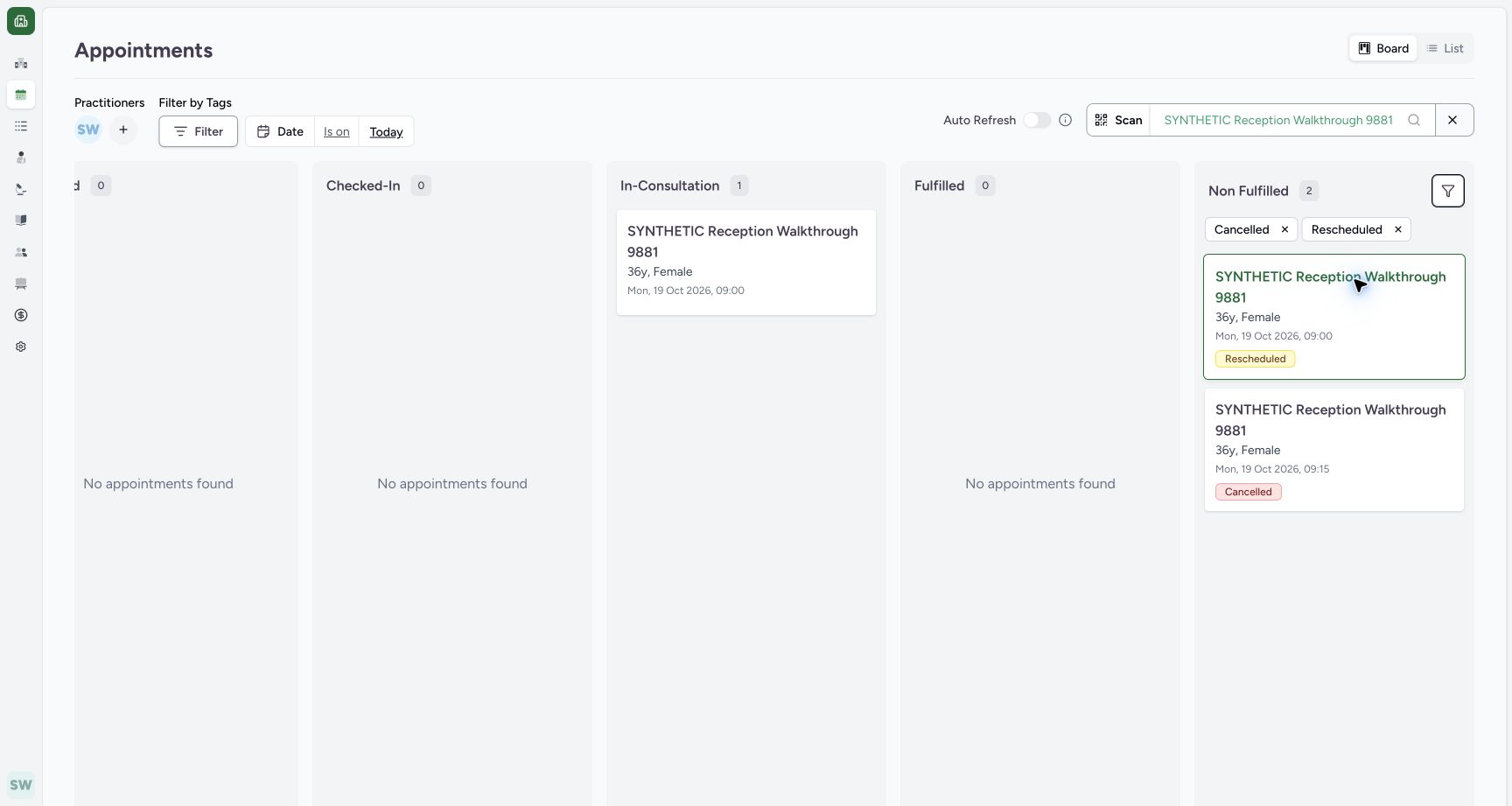

Remove a single filter chip. Actual synthetic Clinic Staff session. — **Recorded release ba551c1d · 2026-10-19T00:51:38.100Z · 1728 × 921**
Remove a single filter chip
Capture details
Exact committed ba551 application, normal existing Staff in its assigned fictional Clinic. Native PDF controls are real Chrome/macOS local output.
Image SHA-256 `fd1e4e724cfbcb2d50833f1349f174c75ec41c4842085eea8e812a656f6c7ca7`
**Cancelled X**: Remove Cancelled using its chip X.
**Rescheduled X**: Each selected status has a separate removable chip.

5. Restore the whole history group

Use the X on the remaining Rescheduled chip. The chips disappear and both retained history cards return.

These controls filter retained history

The pictured menu checks and removable chips change which history cards are displayed. They do not record a new Cancelled, Entered in Error, Rescheduled or No-show event.

Source evidence

Every citation uses this exact committed version. The private source repository requires access.

repositories/platform/mansoq-web/src/pages/Appointments/AppointmentsPage.tsx:584 · ba551c1d67031248136fd2016afe227b5fc994bd
Source file checksum
465c14ff66869ff0996e51407ffa7d8f147f8b40db94bd463b8e9e988c119c25
repositories/platform/mansoq-web/src/pages/Appointments/AppointmentsPage.tsx:617 · ba551c1d67031248136fd2016afe227b5fc994bd
Source file checksum
465c14ff66869ff0996e51407ffa7d8f147f8b40db94bd463b8e9e988c119c25
repositories/platform/mansoq-web/src/pages/Appointments/AppointmentsPage.tsx:668 · ba551c1d67031248136fd2016afe227b5fc994bd
Source file checksum
465c14ff66869ff0996e51407ffa7d8f147f8b40db94bd463b8e9e988c119c25
